5G Wireless Conference System Solution for Small and Medium-Sized Conference Rooms D7101 D7341 - 翻译中...

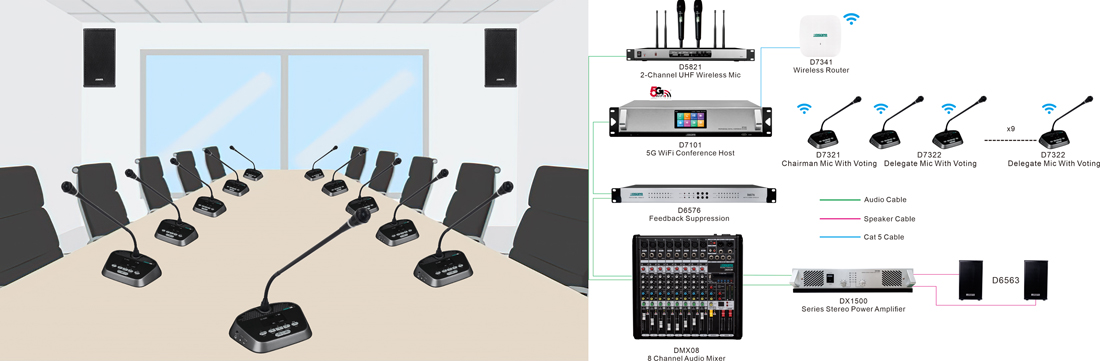

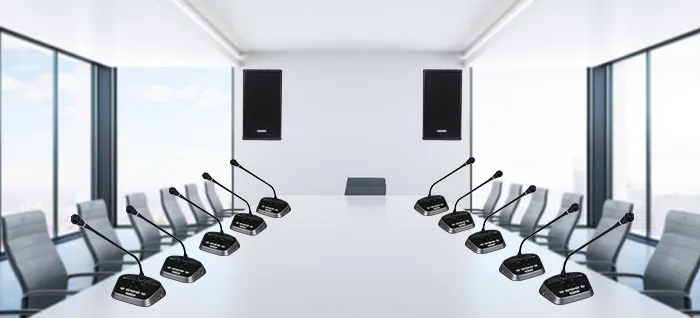

 Pro Sound Solution for 100㎡ Small Conference Rooms

• About 100 square meters conference room (LxWxH) (12x8x4m)

• System Composition: 5G WIFI conference system, professional sound amplification system.

• System Functions: voting meetings, sign-in votes, professional audio amplification.

System Advantages:

• No wiring required, easy to install, convenient to use and maintain, no longer restricted by venues, spaces, or wiring.

• The 5GHz communication frequency band has stronger anti-interference capability and provides greater bandwidth and transmission speed.

• Using 128-bit AES encryption technology, supporting WPA/WPA2 wireless security technology, providing higher confidentiality for the conference system;

• Supports uncompressed audio transmission technology with perfect sound quality from 20Hz to 20KHz, and a 48K sampling rate creates a seamless listening and speaking experience.

Note: This plan is for reference only, please contact us if needed.

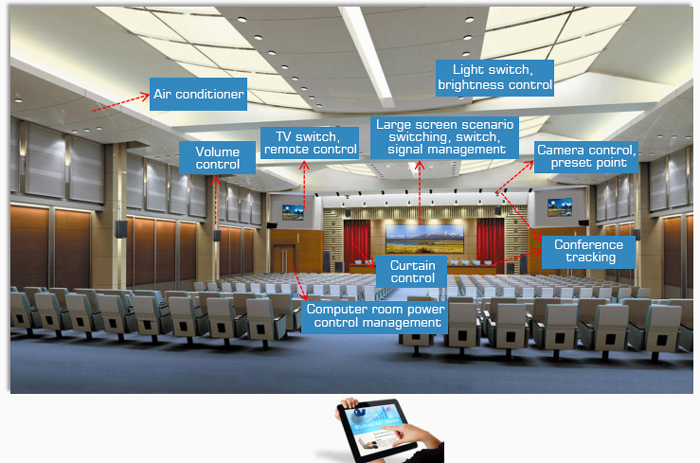

 Central Control System Pro Sound Solution for 200㎡ Medium-Sized Conference Rooms

• About 200 square meters conference room (LxWxH) (20x10x4m)

• System Composition: Conference unit system + video matrix system + central control system + professional sound reinforcement system.

• System Function: With automatic camera tracking, video switching function, one-touch control of  lighting, air conditioning, curtain switch, etc.

System Advantages:

• Efficient and Convenient: 5G wireless technology ensures high-speed transmission for meetings, avoiding the limitations of traditional wired networks, thus enhancing the flexibility and efficiency of conference.

• Intelligent Management: The automated management of the central control system simplifies the operating processes, reduces the complexity of manual operations, and decreases the probability of failures.

• Precise Video Tracking: The camera tracking system provides stable, high-definition video effects, capable of clearly capturing every speaker, enhancing the interactivity of the conference.

• Outstanding Sound Quality: The professional sound reinforcement system ensures that every participant in the conference room can hear the speaker clearly, enhancing the quality and effectiveness of the conference.

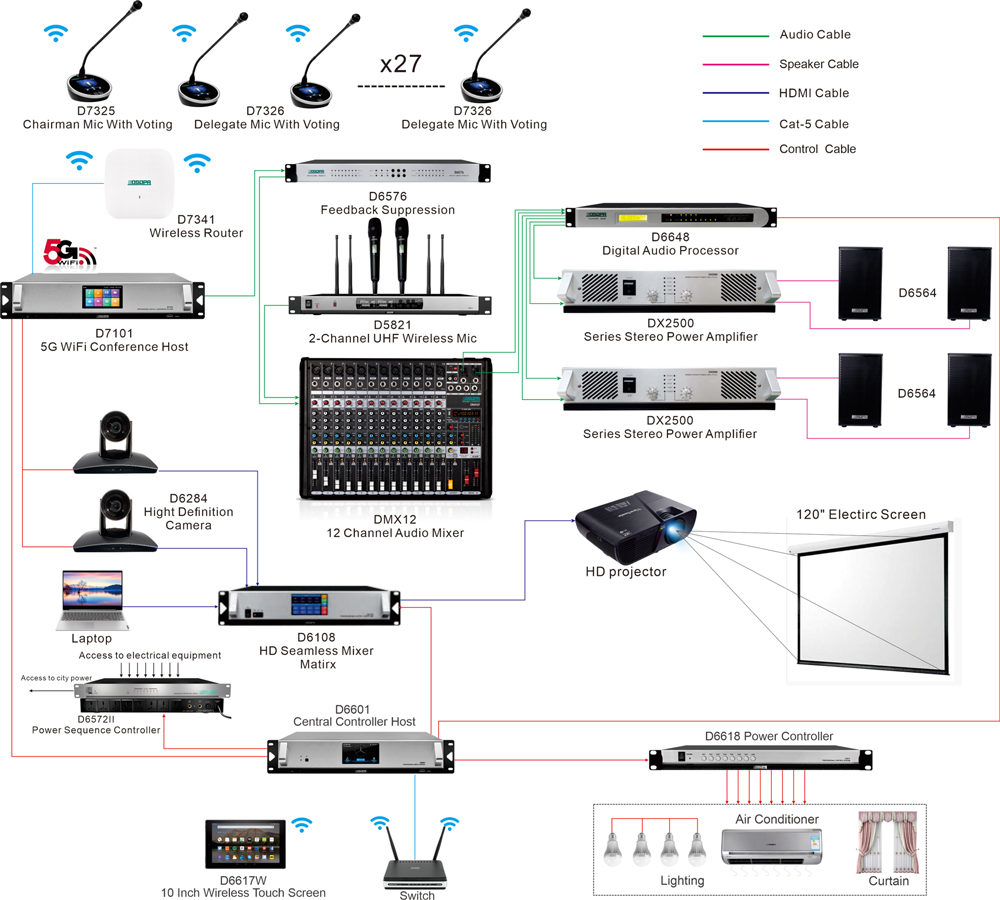

 System Connection + Product List for 200㎡ Medium-Sized Conference Rooms

Note: This plan is for reference only, please contact us if needed.

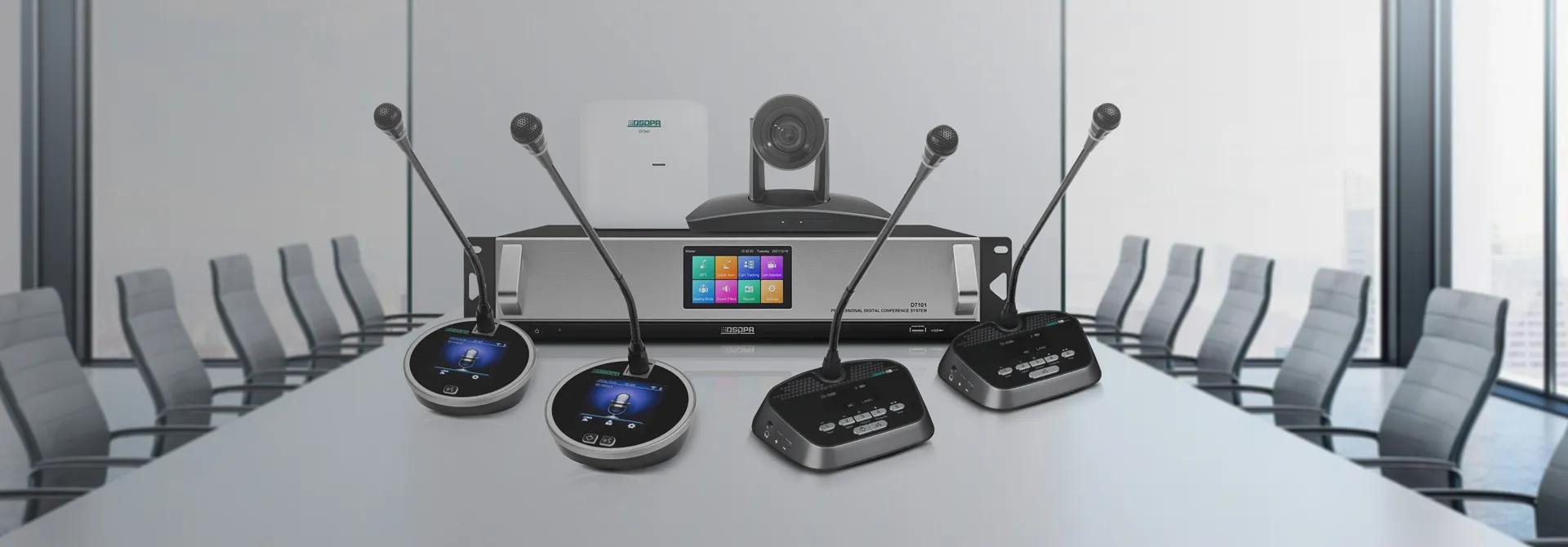

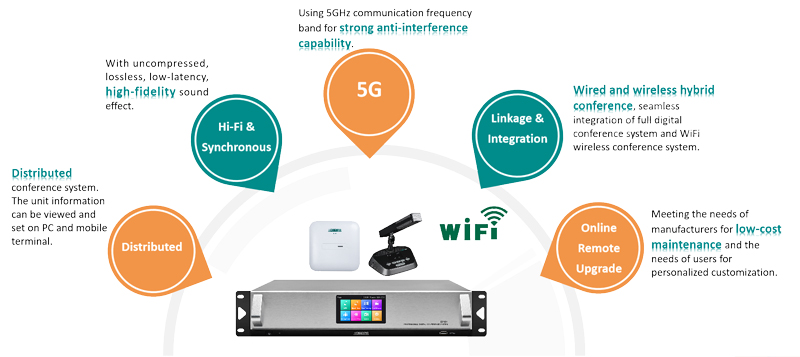

 D7101 D7341 5G WiFi Wireless Conference System

The 5G WiFi conference system adopts the 5.8GHz communication frequency band, which has stronger anti-interference capability and provides greater bandwidth and transmission speed; it utilizes soft mixing wireless WiFi digital audio transmission technology to provide an uncompressed, lossless, low-latency and easy-to-intall conference system solution.

 Features - D7101 D7341 5G WiFi Wireless Conference System

• Using 5GHz communication frequency band for strong anti-interference capability.

• Using 128-bit AES encrypted technology and WPA/WPA2 wireless security technology.

• Using full digital transmission and processing technology for uncompressed audio transmission.

• With dual-band wireless access point, using the latest 802.11ac solution.

• With one-key shutdown of all wireless units.

• Allowing wireless APs expansion by connecting a PoE network switch.

• With abundant conference application functions to meet the needs of daily conference applications.

• With large system capacity; allowing connection to ≤4096 wired conference units, ≤300 wireless conference units.

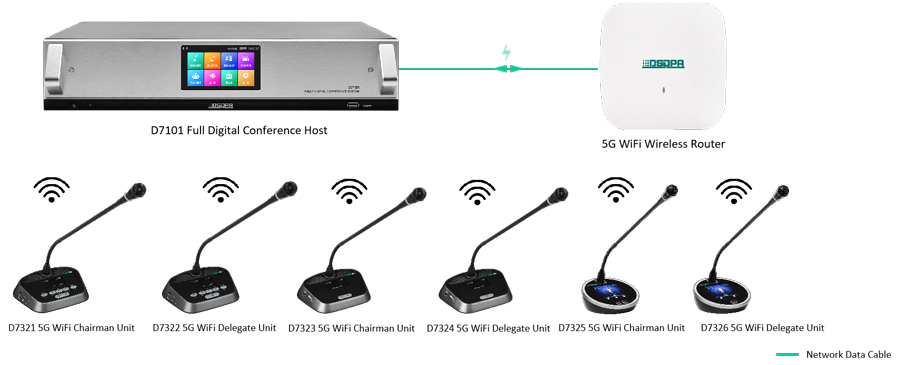

 System Connection - D7101 D7341 5G WiFi Wireless Conference

Built on the full digital conference system, the 5G WiFi conference system adopts the 5GHz communication frequency band, which has stronger anti-interference capability and provides greater bandwidth and transmission speed, and applies soft mixing wireless WiFi digital audio transmission technology to deliver an easy-to-install conference system solution.

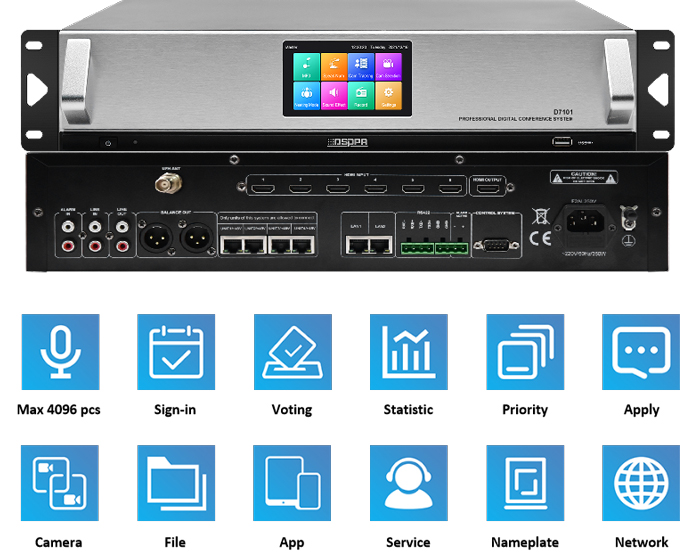

 Product Introduction - D7101 Network Conference System Host

• A conference system can connect up to 4096 conference units.

• Built-in DSP network audio processor, providing uncompressed, high-quality sound effects.

• High-fidelity networked line design, with high microphone stability and strong anti-interference capability.

• Supports five meeting modes: first in, first out; normal mode; voice control mode; free mode; and application mode.

• The entire meeting can be recorded, with both automatic and manual recording options available.

• It has a speaking timer and a reminder countdown for the end of the speaking time. It can also remotely control the opening or closing of the microphone.

• It has a 5V alarm trigger voltage input interface, which combines with the alarm audio input interface to implement the emergency alarm override function.

• 4 100Mbps 48V powered RJ45 network interfaces for network transmission protocol and 48V power supply to the connected conference units.

• It supports both wired conference unit connections and 5G WiFi wireless conference units; it realizes three connection modes: pure wired unit connection, pure wireless unit connection, and a mixed connection of wired and wireless units.

• It can be paired with a simultaneous interpretation system to achieve real-time translation, ensuring that participants can understand the speech content in real time.

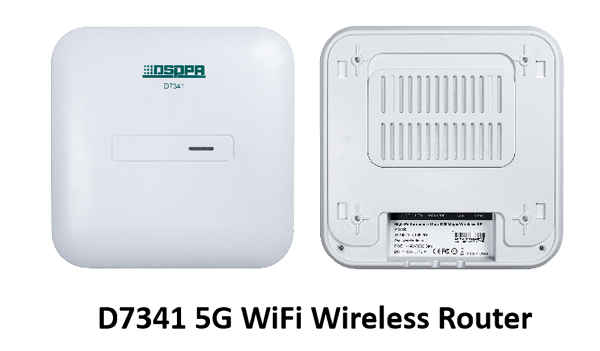

 Product Introduction - D7341 D7331

• Supporting the second generation of 11ac MU-MlMO Wave-2 technology, three times as many as thenumber of users accessing traditional AP.

• AP supports cross-layer,VLAN management.

• There are a lot of SSlD,SSlD VLAN isolation in Chinese.

• Seamless roaming,load balancing.

• Spectrum Navigation,5G first.

• Business and management lP separation.

• AP Trace.

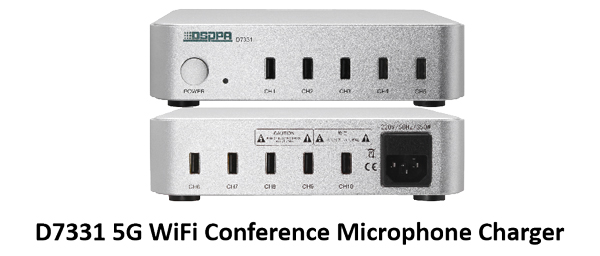

• The charging case includes 10 outlets to simultaneously charge 10 lithium-ion-battery wirelessconference units.

• The lithium battery is 10000mAH, empty to full charge in 3.5 hours;

• It has 10 USB-a output voltage connectors;

• Supporting high-pass Qc3.0 charging protocol and fast and slow charging;Wide voltage input AC100V-240V/50-60Hz.

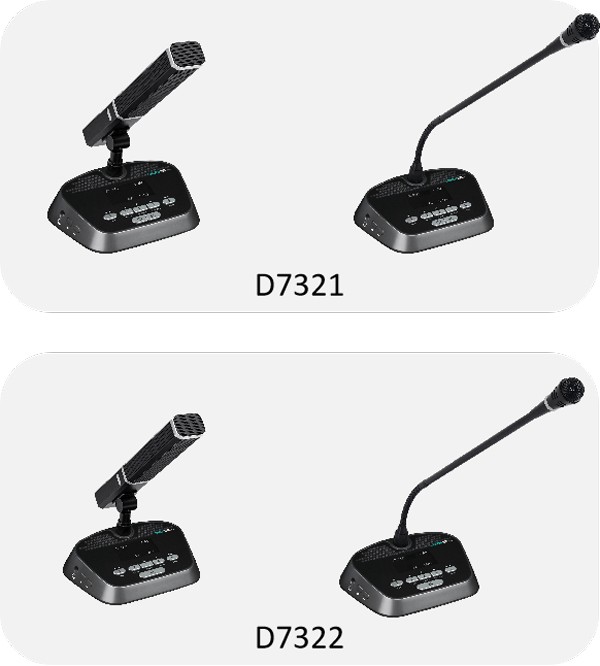

 Product Introduction - D7321/D7322 Conference Unit With Voting

• Use 2.42 inch OLED screen, display voting results, volume,microphone status, power state, WiFi status, etc.

• Wide viewing angle, with high contrast 128 × 64

• Built-in rechargeable lithium battery, battery capacity 10000mAh, continuously speaking for more than 8 hours

• 128-bit AES digital encryption technology, WAP / WAP2 security connection, MAC address filtering, hidden SSID,prevent eavesdropping and unauthorized access

• High directive microphone, with windproof cover, with LED indicator ring, speech for red, wait for green

• D7321 is chairman microphone, with first priority button

• D7322 is delegate microphone, location is unrestricted, support check-in function

• Using a low-delay technology, minimum delay is less than 20 ms; non-compressed audio transmission,

• 48K sampling rate, digital control, high quality of audio transmission

Note: Standard equipped with a 186mm aluminum alloy square rod, optional gooseneck/oval microphone rod.

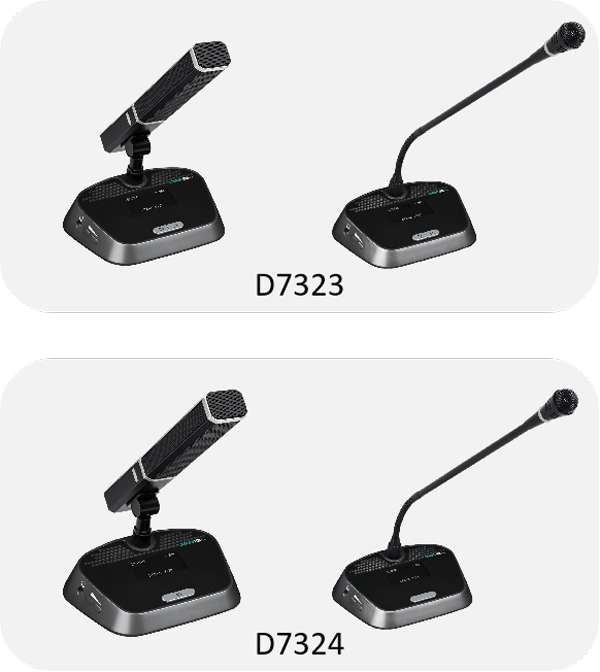

 Product Introduction - D7323/D7324 Conference Unit

• Use 2.42 inch OLED screen, display voting results, volume, microphone status, power state, WiFi status, etc.

• Wide viewing angle, with high contrast 128 × 64

• Built-in rechargeable lithium battery, battery capacity 10000mAh, continuously speaking for more than 8 hours

• 128-bit AES digital encryption technology, WAP / WAP2 security connection, MAC address filtering, hidden SSID,

• prevent eavesdropping and unauthorized access

• High directive microphone, with windproof cover, with LED indicator ring, speech for red, wait for green

• D7323 is chairman microphone, with first priority button

• D7324 is delegate microphone, location is unrestricted, support check-in function

• Minimum delay is less than 20 ms; non-compressed audio transmission

• 48K sampling rate, digital control, high quality of audio transmission

Note: Standard equipped with a 186mm aluminum alloy square rod, optional gooseneck/oval microphone rod.

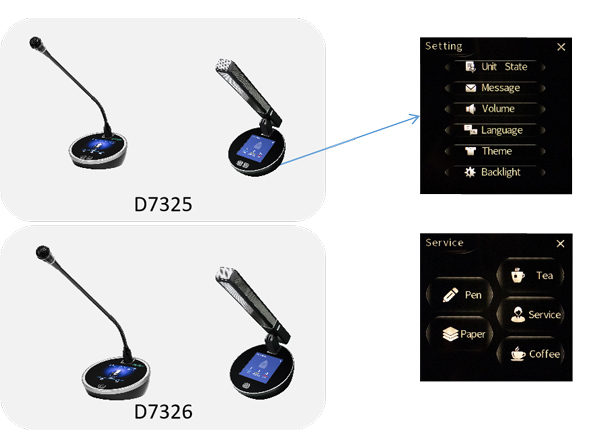

 Product Introduction - D7325/D7326 Conference Unit With Voting

• 4-inch square LCD touch screen

• Real-time display of ID, voting results, and attendance status

• Switch between Chinese and English / Volume / Theme Settings

• Intelligent function integration:

Speech/Sign in/Vote/Rating/Text message/Tea service

• Chairman's unit exclusive:

✓ All members mute/turn off the representative unit

✓ Initiate a vote

✓ Approve the speech application

✓ No limit on the number of speeches.

Core Features:

• 5G WiFi 128-bit AES digital encryption

• WAP/WAP2 secure connection   MAC filtering   SSID hiding

• Anti-eavesdropping and unauthorized access

Note: Standard equipped with a 186mm aluminum alloy square rod, optional gooseneck/oval microphone rod.

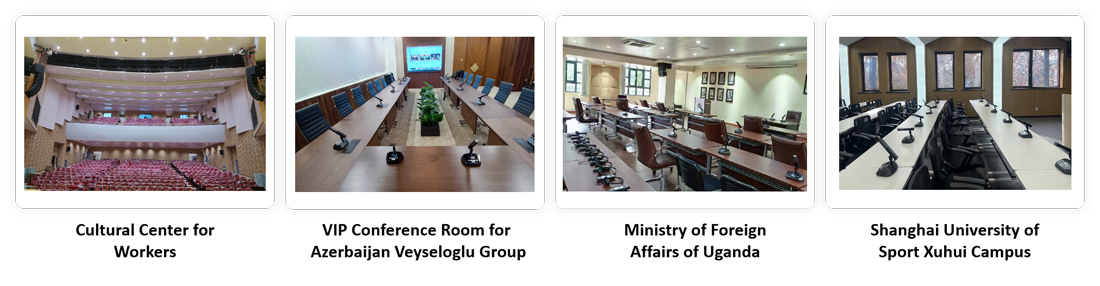

Cases - D7301 5G WIFI Wireless Conference System

The D7301 5G WIFI wireless conference system is suitable for various meeting scenarios, such as internal corporate meetings, international summits, academic seminars, and command and dispatch, where it can play an important role.
