AI Digital Conference Microphone System Solution for Conference Rooms D5831AI - 翻译中...

D5831AI Configuration for Individual Speaking

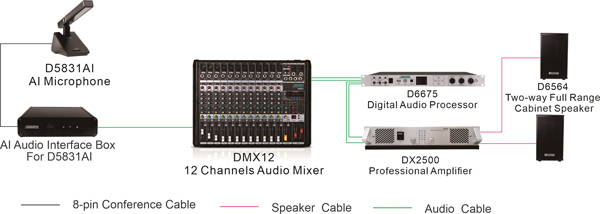

System Configuration

Training Room: 50–100㎡

System Composition:

• Microphone: 1 × D5831AI Condenser AI Conference Microphone.

• Audio Interface Box: 1 × AI audio interface box supporting 12V input voltage, equipped with 2 × RCA (unbalanced input) connectors and 1 × XLR (balanced output) connector.

• Amplifier and Mixer: Connected to the output of the AI audio interface box to transmit audio signals to speakers or the sound system.

Application Configuration:

• Audio signals are transmitted from the microphone to the amplifier or mixer via the RCA connectors on the audio interface box, then routed to the speaker system.

• When using the D5831AI microphone, its built-in intelligent gain and feedback suppression functions help eliminate howling and noise, ensuring clear and natural speech reproduction during meetings.

• A red light indicator is activated when speaking, helping prevent overlapping speech from multiple users.

System Advantages

• Ultra-long Pickup Range: Captures the speaker’s voice clearly from all areas of a small to mid-sized room without blind spots.

• High Acoustic Gain: Delivers strong audio output, ensuring clear transmission through the connected sound system.

• Intelligent Noise Reduction: Effectively filters out background noise, enhancing overall voice quality.

• Easy Installation: Integrated mic rod and precision cabling simplify wiring and installation.

 D5831AI Configuration for Small to Medium-Sized Conference Rooms

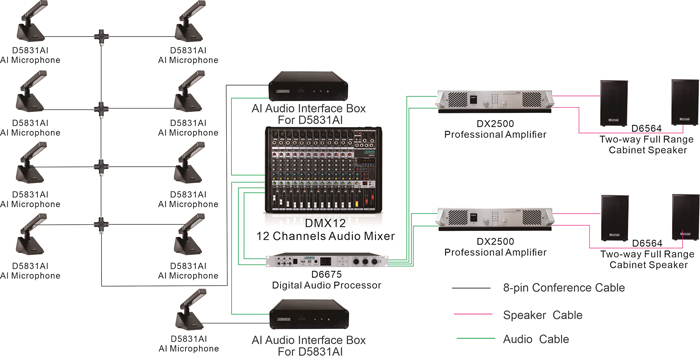

System Configuration

Conference Room: 100-150㎡

System Composition:

• Audio Input: Configure 10 units of the D5831AI conference microphone based on room size. (Each audio interface box supports up to two microphones; for more microphones, a customized power module is required.) This ensures full coverage of the meeting space without overlapping pickup ranges or voice interference.

• Audio Processing Equipment: Each microphone is connected to a mixer via the audio interface box  for signal processing and routing. This ensures balanced, clear audio output from all microphones.

• Amplifier/Speaker System: The final audio signals are sent to the amplifier and speaker system, providing clear sound reinforcement throughout the entire room, ensuring every participant can hear the speaker clearly.

System Advantages:

Omnidirectional Pickup: Ensures that every speaker in large-scale meetings can be heard clearly, while minimizing interference between microphones.

High Scalability: The number of microphones can be flexibly expanded based on the size of the meeting, adapting to various application needs.

High-Quality Audio: Each microphone delivers high-fidelity audio transmission with intelligent processing, ensuring natural and clear voice reproduction from all participants.

Efficient Management: With the use of a mixing console, volume, sound effects, and mixing for each microphone can be precisely adjusted to deliver an optimal audio experience.

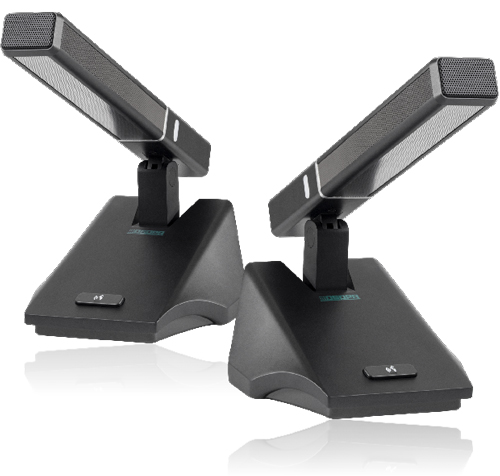

Product Introduction_D5831 AI Digital Microphone

Feature Highlights

• Extended Pickup Range: Equipped with a 240mm integrated microphone rod and cardioid pickup pattern, offering a 30% increase in acoustic gain.

• Intelligent Noise Reduction: AI-powered algorithm effectively filters out ambient noise such as air conditioning and keyboard sounds (SNR ≥ 70dB).

• Feedback Suppression: Real-time acoustic processing eliminates howling and ensures clear audio.

• Integrated Design: Built-in red speaking indicator light and 2-meter dedicated 8-pin DIN cable.

• Versatile Connectivity: Audio interface box supports RCA (unbalanced input) and XLR (balanced output) connections.

• Safe Power Supply: 12V low-voltage input minimizes electrical interference and ensures reliable operation.

 Product Introduction_D5831 AI Digital Microphone

Application Scenarios

As the core audio conference device of a conference audio system, the D5831AI Condenser AI Conference Microphone delivers outstanding pickup performance and intelligent noise reduction, significantly enhancing overall audio quality. With proper system configuration and precise audio processing, it ensures clear and natural sound transmission even in complex meeting environments, meeting the needs of various meeting scales and audio application scenarios.
