 Multi-Function Hall Solution Configuration

Multi-Function Hall Solution Description

Solution Description

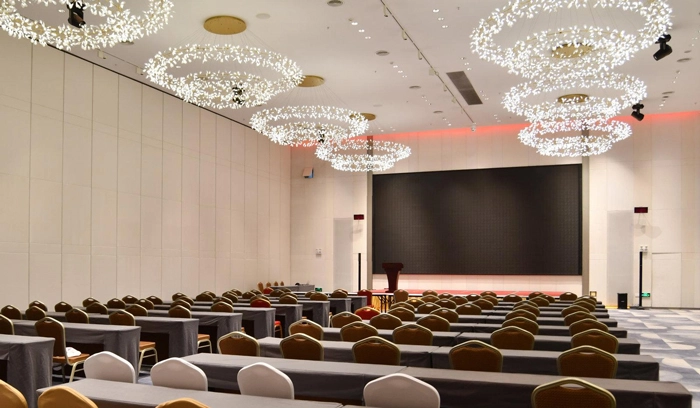

• Multi-Function Hall Size:

• 150-300㎡ (Recommended length-to-width ratio: 1:1.5 to 1:2, with a ceiling height of ≥4m)

• System Components:

• Audio System+Video System

• Equipment Configuration:

• Microphone System: The system includes true diversity wireless microphones, wired microphones, and desktop microphones, which can be adjusted based on different needs to ensure clear speech transmission. We have also equipped the system with an antenna amplification system to enhance wireless signal stability and prevent issues such as signal dropouts and frequency interference.

• Main Column Speaker: DSP2008 160W Two-Way Array Column Speaker

• ①The wide audio dispersion angle of the DSP2008 covers a large audience area, complementing the visual effects of the LED display. Its broad frequency range ensures that the audience hears the sound clearly from various angles, enhancing the auditory experience synchronized with the LED screen’s visual effects.

• ②The simple design of the DSP2008 seamlessly integrates with the appearance and functionality of the LED screen. Its modern and minimalist styling complements the LED screen's design, creating a visually cohesive and professional equipment setup.

• ③With flexible connection options, the DSP2008 supports various audio devices and LED control systems, ensuring seamless integration of audio and visual signals for coordinated operation between the sound system and the LED display.

• ④The DSP2008 delivers excellent high-frequency clarity and deep low-frequency performance, complementing the high-definition images presented by the LED screen. The sound balance, whether for wave impact or waveform, creates a more immersive multimedia experience, especially in scenarios requiring voice narration, background music, or live events.

• Auxiliary Equipment: Digital mixing console, wireless microphones, audio processor. Audio signals are optimized and adjusted through the digital signal processor (DSP), ensuring clear, balanced sound from the column speaker while eliminating echo and distortion.

• Equipment Installation

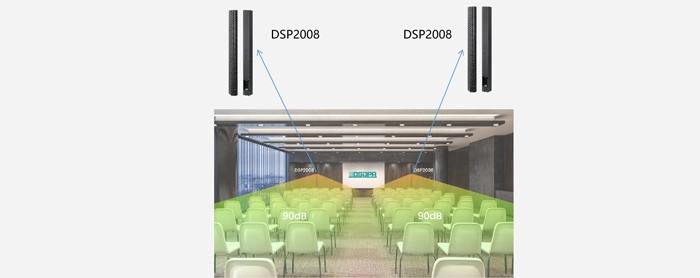

• Column Speaker Installation: The column speakers should be symmetrically suspended on both sides of the stage or LED screen, with the tilt angle directed toward the audience center to avoid sound reflections from the walls.

• LED Screen Position: The screen should be placed at the center of the stage backdrop, with the bottom 0.8-1.2 meters above the ground to avoid obstruction.

Outdoor Solution Configuration

Note: This system solution is for reference only. Please contact us if needed.

 Outdoor Performance Solution Description

Solution Description

• Sound Coverage Area:

• Covers approximately 150-250 meters, suitable for venues accommodating hundreds to thousands of listeners, such as concerts, sports events, and outdoor activities.

• System Components:

• Audio System+Video System

• Equipment Configuration:

• Microphone System: The system includes true diversity wireless microphones, wired microphones, and desktop microphones, which can be adjusted based on different needs to ensure clear speech transmission. We have also equipped the system with an antenna amplification system to enhance wireless signal stability and prevent issues such as signal dropouts and frequency interference.

• Main Speaker: DSP3036 + Outdoor LED Screen for Superior Audiovisual Experience

• ①Adjustable Main Beam Control for precise sound coverage, ensuring clear and balanced audio for all audience members.

• ②Built-in DSP and Digital Equalizer for high-fidelity sound, enhancing audio quality to complement the LED screen’s high-definition visuals.

• ③Multiple Input Compatibility supports various audio systems, adapting to different scenarios with a flexible and easy-to-install design for quick deployment.

• ④High Power Output delivers sufficient sound pressure for large spaces, ensuring clear audio even in noisy outdoor environments, perfectly synchronizing with the LED screen.

• ⑤Weather-Resistant Design with waterproof components and an aluminum casing, ensuring reliable performance in sun, rain, and harsh outdoor conditions for long-term stability alongside the LED display.

• Auxiliary Equipment: Digital mixing console, wireless microphones, audio processor. Audio signals are optimized and adjusted through the digital signal processor (DSP), ensuring clear, balanced sound from the column speaker while eliminating echo and distortion.

• Equipment Installation

• Column Speaker: Four phased array column speakers can be arranged based on the venue layout, with the option to install them directly on pillars or walls.

• LED Screen Position: The LED screen should be installed in the most visually focused area, typically at the center or slightly offset from the main audience zone, ensuring clear visibility of the content from any position in the venue.

Product Introduction_DSP2008 Two-Way Array Column Speaker

Features:

• Ultra-compact and lightweight design for easy handling and installation.

• High-strength aluminum alloy enclosure for durability and enhanced performance.

• Seven sound path into semi-olive wave front design delivering a wide 120° (H) × 10° (V) dispersion angle for clear and precise sound coverage.

• High-Performance Driver Unit Combination (1" Compression + 8×2" Neodymium Full-Range Drivers), offering low distortion and high fidelity.

• Versatile connection options with Phoenix connector and NL4 Speakon for flexible setup.

• Slim and elegant design that fits seamlessly into various environments.

Product Introduction_DSP3025/DSP3036

Features:

• Acoustically simulate the sound columns of different shapes, up to 6 sound beams, and vertical sound direction adjustable with a remote.

• Active sound column with digital signal processor(DSP) and digital power amplifier built in, rated 240W/360W.

• Built-in 100v/70v transformer

• Volume, tone and other parameters of the sound column adjustable

• Waterproof speaker unit and overall stamping aluminum housing design, suitable for outdoor use

• With DSP-3000 regulator for easy configuration Compact size, easy installation and high electro acoustic sensitivity




Application Scenarios

The combination of column speakers and LED displays not only achieves efficient sound reinforcement but also delivers powerful visual presentation effects. With proper selection of visual equipment, system configuration, and precise tuning, it provides users with a high-quality audiovisual experience, meeting the demands of various indoor and outdoor environments. This solution is applicable in venues such as sports stadiums, exhibition centers, conference halls, train stations, and churches.
