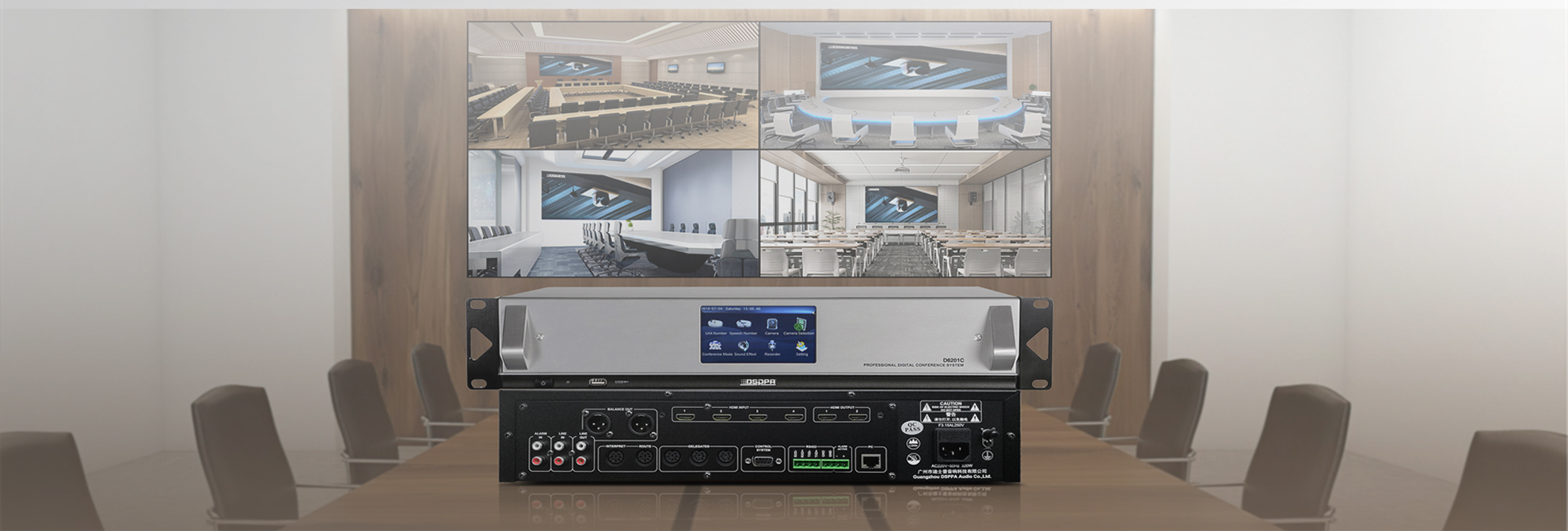

Wired Conference System with Camera Function Solutions for Conference Rooms D6201C - 翻译中...

Solution Overview - 翻译中...

This solution is based on the D6201C conference host with 4 HDMI inputs and 2 HDMI outputs (4 in and 2 out), with camera tracking function and flexible switching of split mode or matrix mode, suitable for medium-sized conference rooms with 10-20 people. Through the support of this conference host, efficient and clear audio-visual display can be carried out during the meeting, and the display content can be accurately controlled and displayed according to actual needs to meet various conference needs.

طلب عرض توضيحي

Wired Conference System with Camera Function Solutions for Conference Rooms D6201C - 翻译中...

Design Requirements

Space Utilization Optimization: The dual-screen design ensures visibility from any position and avoids the blind spot of the traditional single-screen viewing angle.
Improvement of Decision-making Efficiency: Avoid lag and stuttering for consistent audiovisual results.
Cost Control: A single host replaces the traditional matrix + central control equipment, reducing the complexity of wiring and maintenance costs. Split-screen functionality reduces the need for multi-monitor procurement
Easy to Operate and Maintain: The system design should be easy to operate and maintain, provide a simple operation interface, and be able to quickly adjust the volume, screen content, sound effects, etc. At the same time, the equipment should support remote monitoring and diagnosis, which is convenient for later maintenance and management.

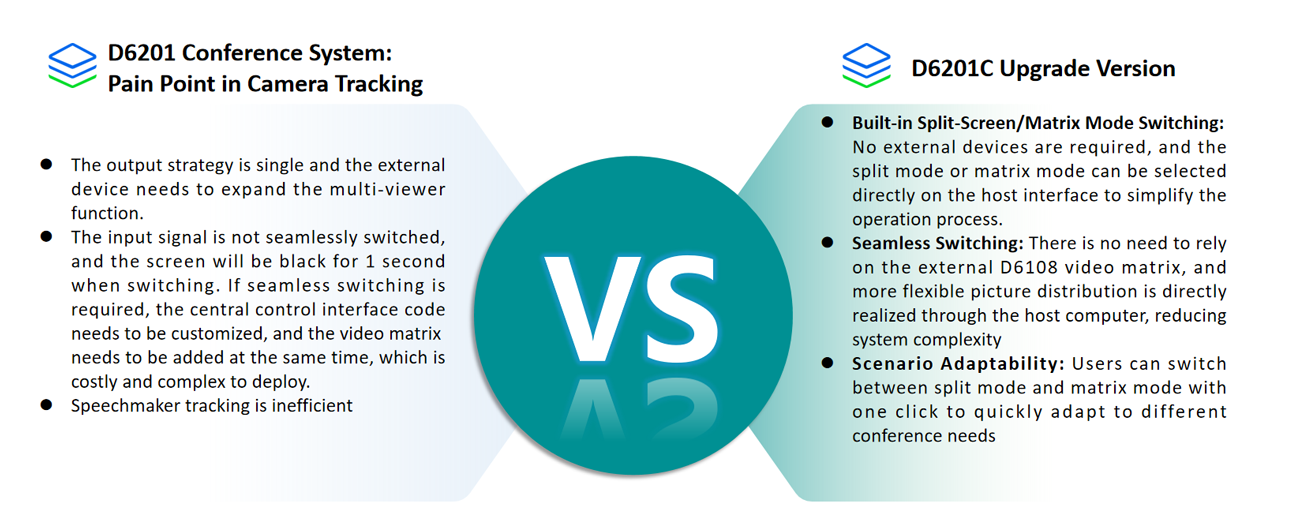

Pain Points

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1.png

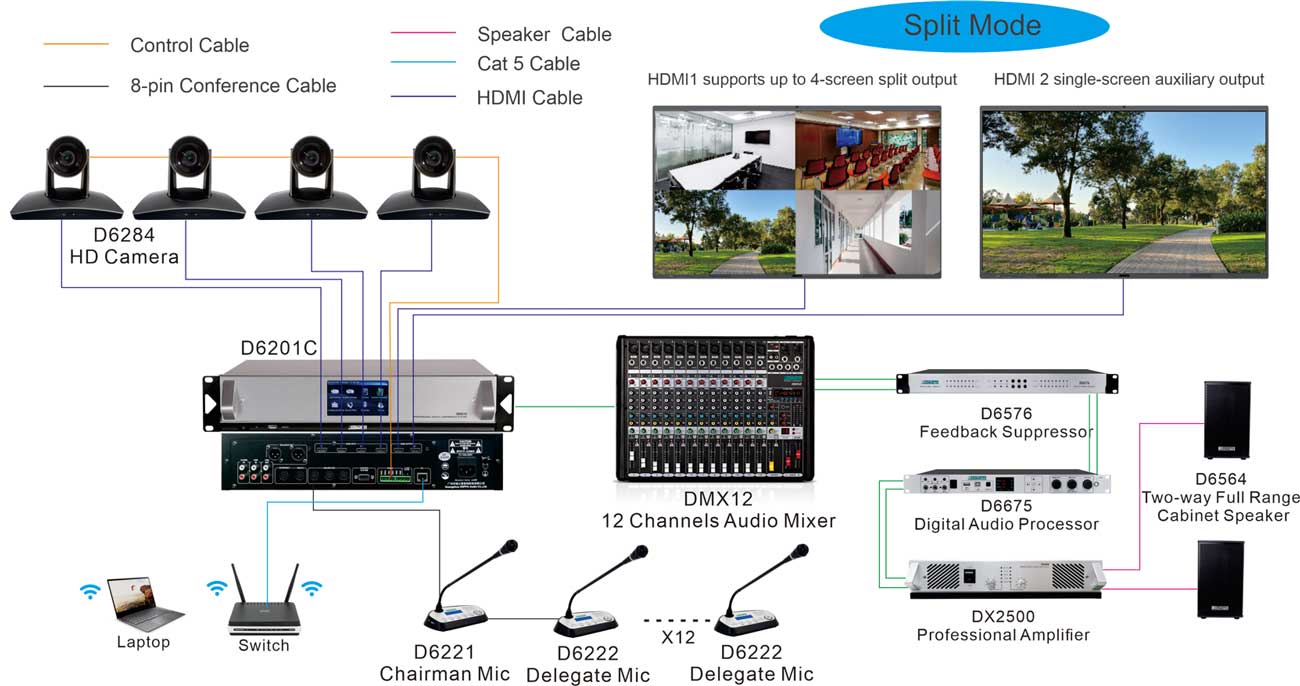

Multi-Camera Split-Screen Display Solution with the D6201C Conference Host

No.	Model	Product Name	Quantity
1	D6201C	Digital Conference System Host	1PC
2	D6221	Chairman Mic	1PC
3	D6222	Delegate Mic	2PCS
4	D6284	HD Camera	4PCS
5	DMX12	12-Channel Audio Mixer	1PC
6	D6576	Feedback Suppressor	1PC
7	D6675	Digital Audio Processor	1PC
8	DX2500	Professional Amplifier	1PC
9	D6564	Two-way Full Range Cabinet Speaker	2PCS
10	DCP-8686	Intelligent Interactive Flat Panel	2PCS

NOTE： This system solution is for reference only. Please contact us if needed.

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(2).jpg

Solution：

Meeting Room Size: 8*10=80㎡

System Configuration: Conference System + PA System + Camera Tracking

Configuration Description: In split mode, D6201C Output 1 adjusts the display content according to the state of the bound unit. You can choose different display modes such as full-screen display, 2-split screen, 3-split screen, and 4-split screen to meet the display requirements in different scenarios.

Full-screen Mode: Display a main picture, such as the speaker or important presentation.

2 Split Screens, 3 Split Screens, 4 Split Screens: Multiple screens can be displayed at the same time, such as videos of different participants, PPT content, etc.

Output 2 will display the screen of the last action performed, which is suitable for situations where you need to turn off the screen or display specific content.

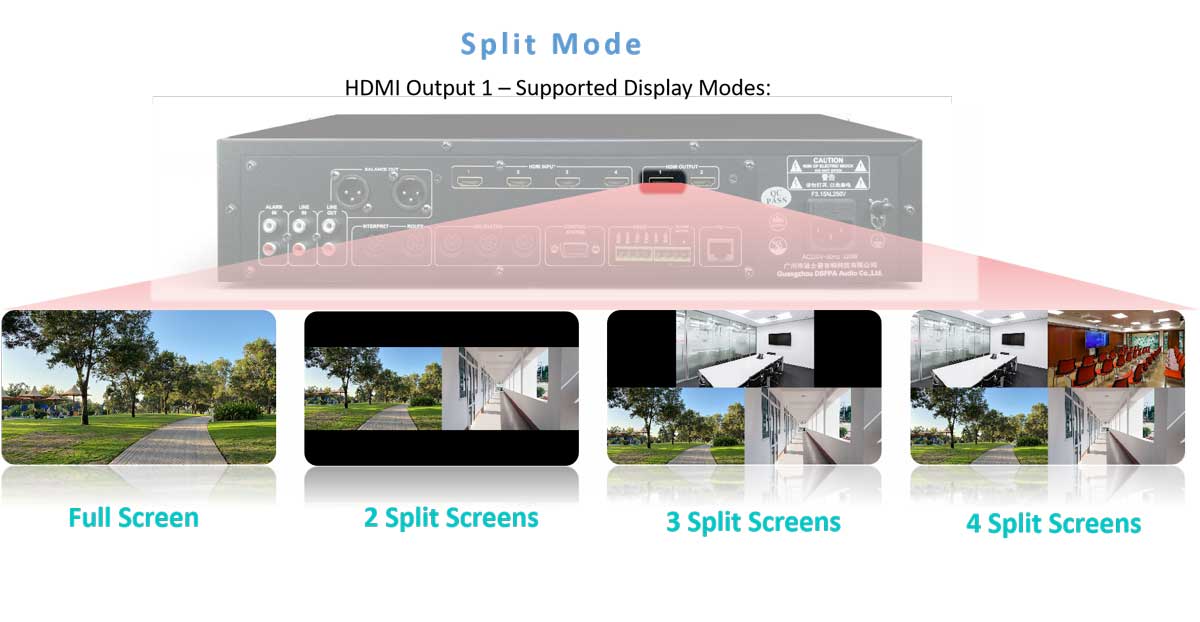

D6201C Schematic Diagram of Split Mode

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(7).jpg

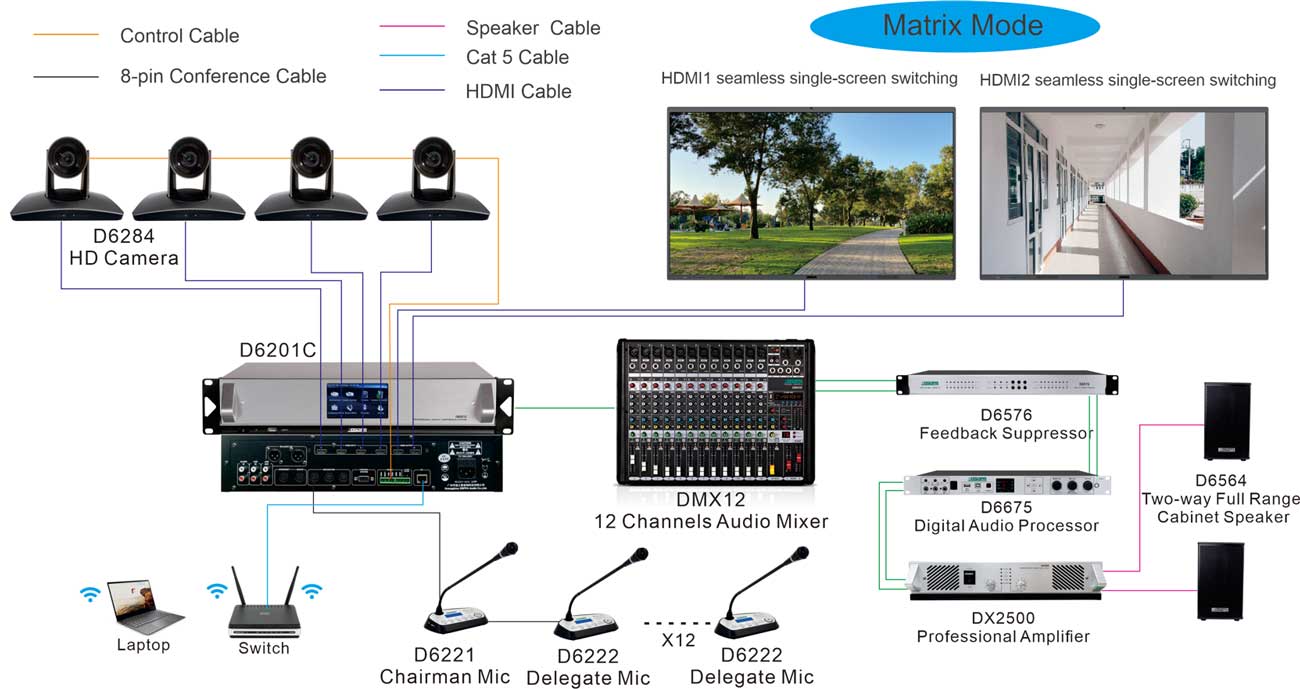

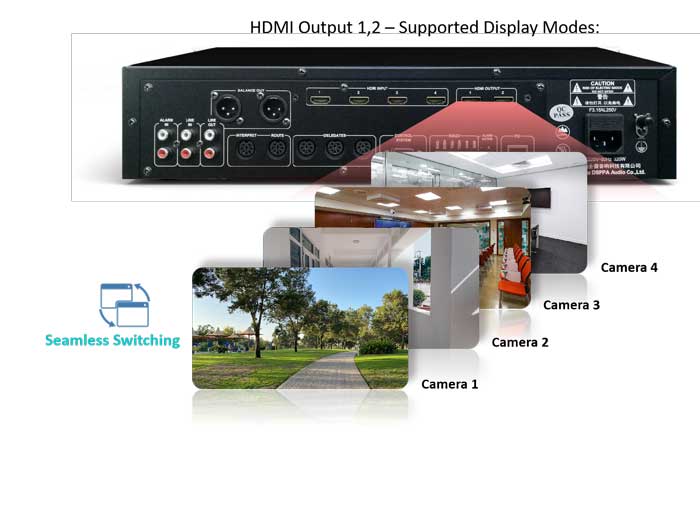

D6201C Seamless Switching of Multiple Camera Inputs

No.	Model	Product Name	Quantity
1	D6201C	Digital Conference System Host	1PC
2	D6221	Chairman Mic	1PC
3	D6222	Delegate Mic	2PCS
4	D6284	HD Camera	4PCS
5	DMX12	12-Channel Audio Mixer	1PC
6	D6576	Feedback Suppressor	1PC
7	D6675	Digital Audio Processor	1PC
8	DX2500	Professional Amplifier	1PC
9	D6564	Two-way Full Range Cabinet Speaker	2PCS
10	DCP-8686	Intelligent Interactive Flat Panel	2PCS

NOTE： This system solution is for reference only. Please contact us if needed.

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(13).jpg

Solution：

Meeting Room Size: 8*10=80㎡

System Configuration: Conference System + PA System + Camera Tracking

Full-screen Mode: Display a main picture, such as the speaker or important presentation.

2 Split Screens, 3 Split Screens, 4 Split Screens: Multiple screens can be displayed at the same time, such as videos of different participants, PPT content, etc.

Output 2 will display the screen of the last action performed, which is suitable for situations where you need to turn off the screen or display specific content.

D6201C Schematic Diagram of Matrix Mode

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(8).jpg

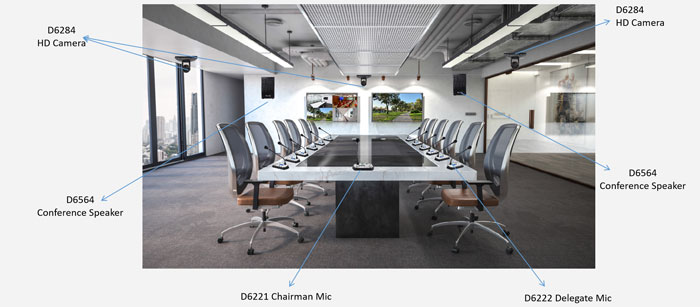

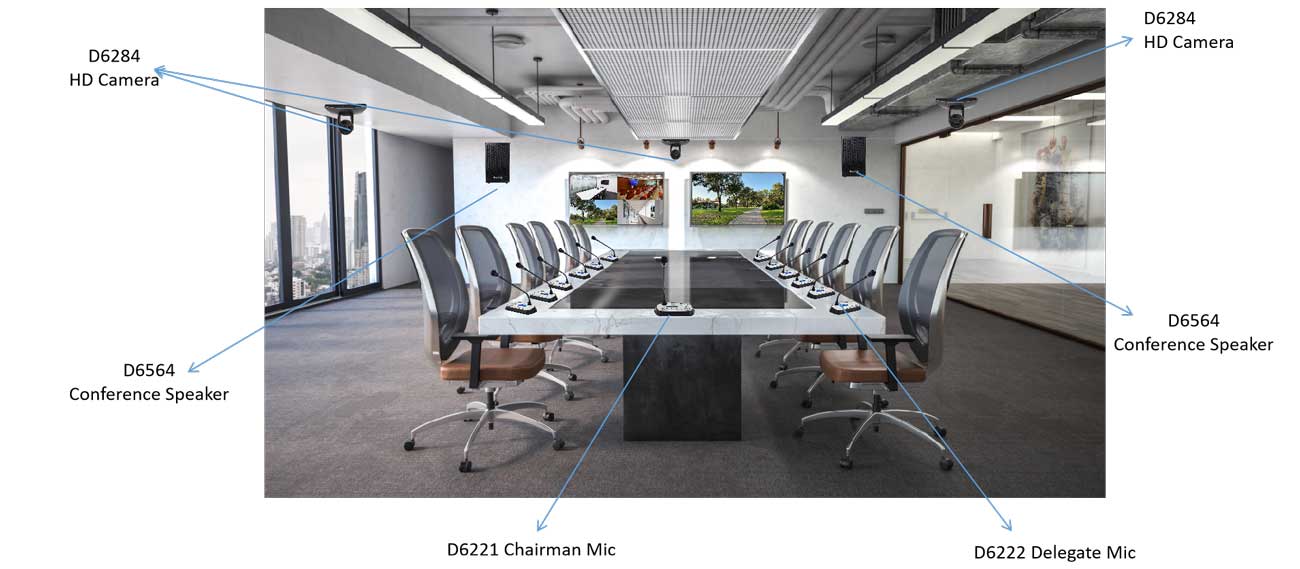

Schematic Diagram of Conference Room Layout

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(12).jpg

D6201 Intelligent Digital Conference System


The Conference Host is highly integrated, and the main functional modules include conference discussion, voting, simultaneous interpretation (need to be used with simultaneous interpretation conference system), camera tracking, automatic recording, multimedia player, line input and output, and linkage central control system.

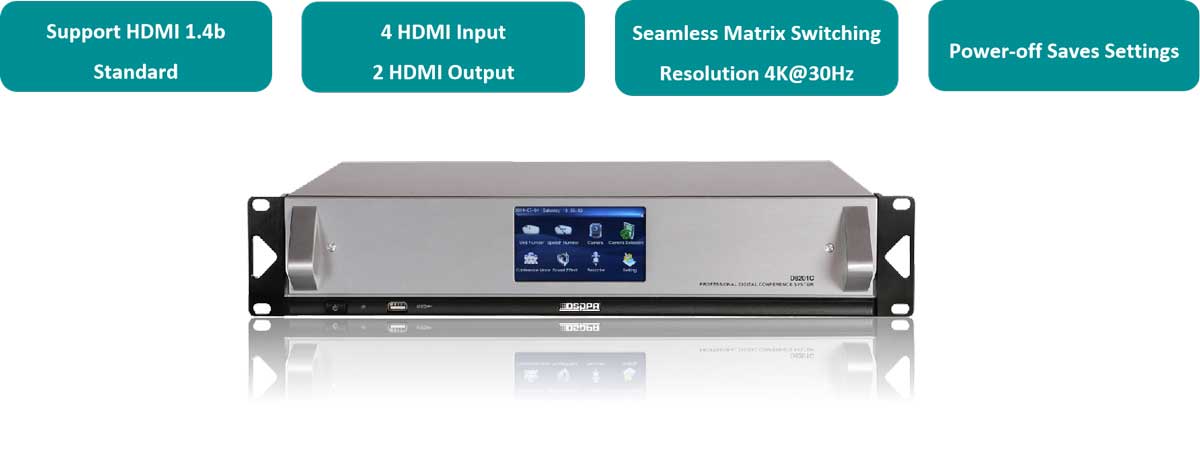

D6201C New Functions

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(10).jpg

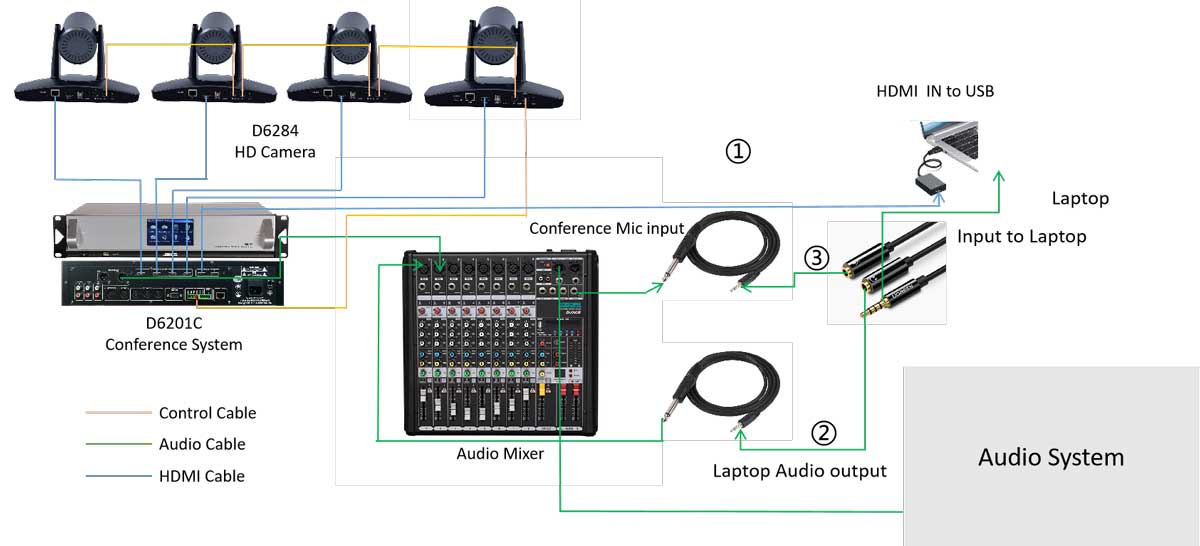

Connect the D6201C with Video Conference Platforms such as Zoom and Google Meet

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(11).jpg

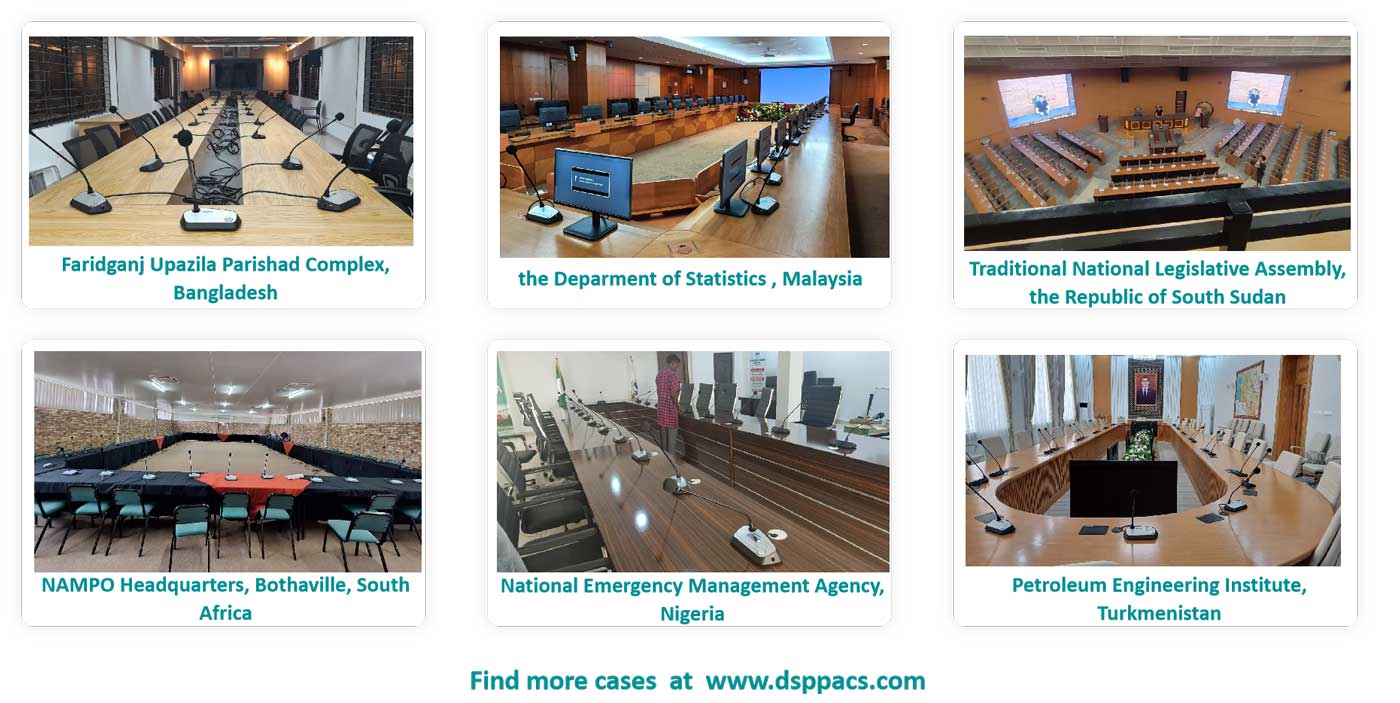

D6201 Wired Conference System - Cases Reference

Array-Column-Speaker-with-LED-Display-for-Indoor-and-Outdoor-Scenarios-DSP2008-&-DSP3036-1_(5).jpg
