Expansion Capability: The antenna distribution system is designed for large-scale UHF wireless systems. Each main unit allows up to eight dual-antenna wireless receivers to share the same two antennas.
Compatibility: The system is compatible with all wireless microphone receivers operating within the supported frequency range.
Cascade Port: By connecting one of the A or B output BNC ports to another antenna distribution system, the number of wireless microphone receivers can be further expanded.

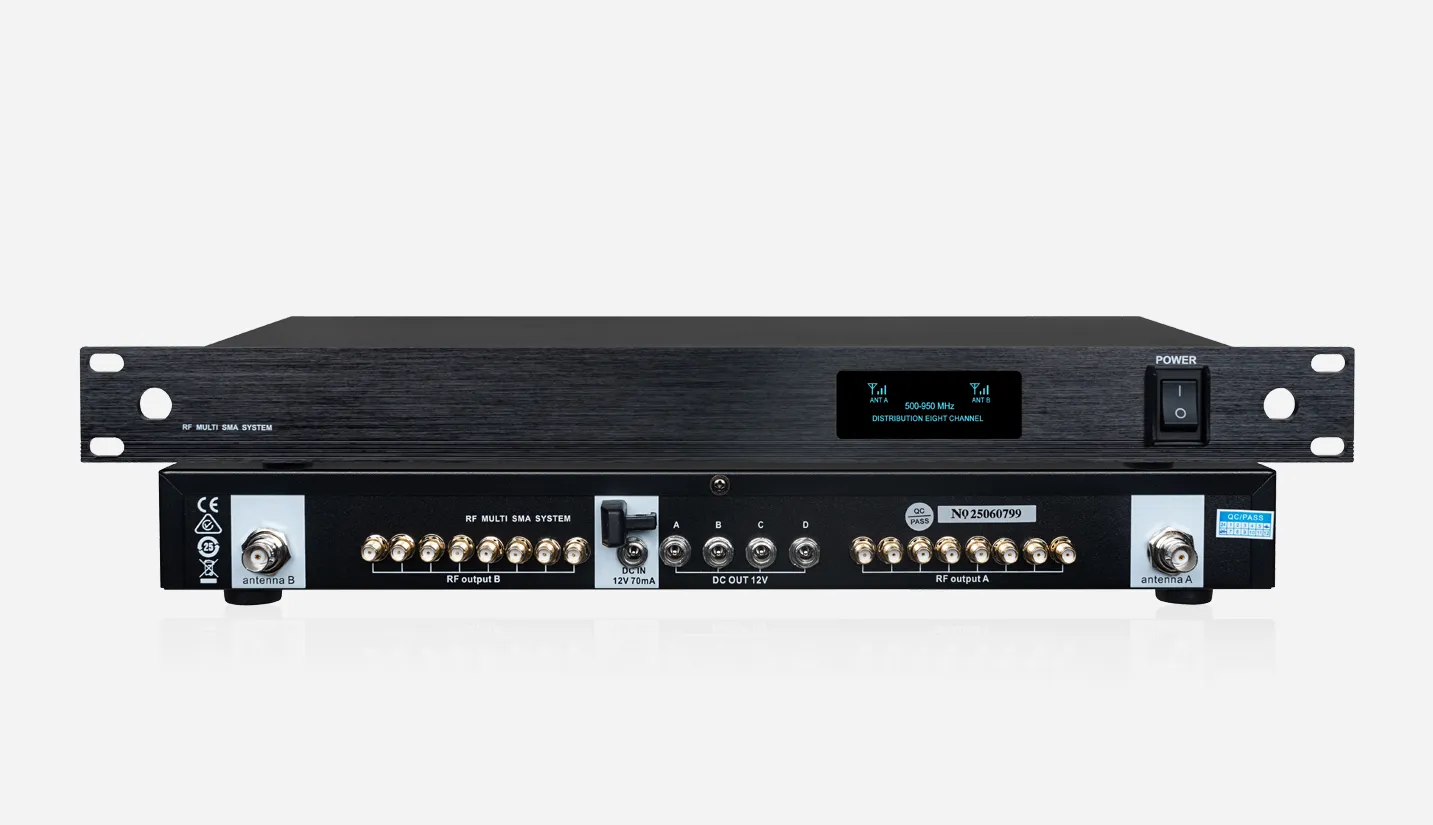

This unit is a UHF antenna distribution system with built-in amplification, designed to expand the functionality of wireless microphone systems by splitting a pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss caused by distributing signal power across multiple output connectors. Additionally, it is equipped with a power connector capable of supplying DC power to UHF wireless systems.
Model | P8816 |
Operating Frequency | 470-950MHz |
Operating Current | DC Max. 3000mA±100mA |
Operating Voltage | DC 12-15V |
Bias Voltage | DC 12V±1V |
Bias Current | DC 150mA±10mA |
DC Outlet | 4 ports, max. 2.5A |
Gain | 0dB±1dB |
Antenna Interfaces | SMA*16 |
Bias Interfaces | BNC*2 |
Impedance | 50Ω |
