4 analog inputs and 8 analog outputs.
Each input support to switch AES3 signal.
4 channels Dante network audio optional.
High performance DSP process, 96k24bit sampling rate.
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and HSLV. Support ALL-PASS, Band pass, Band stop filters, Phase, Notch filter, 3 kinds of High pass and Low pass.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps 48k FIR linear phase setting.
Output with 4 x 512Taps 48k FIR linear phase setting.
Standard FIR automatic linear phase function designer.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control connection.
Nice GUI windows7/8/10/11 software .
Colourful LED indicator for input and output signal.
High analytical power, wide dynamic audio performance, suitable for stage, bar and other high-end sound systems.

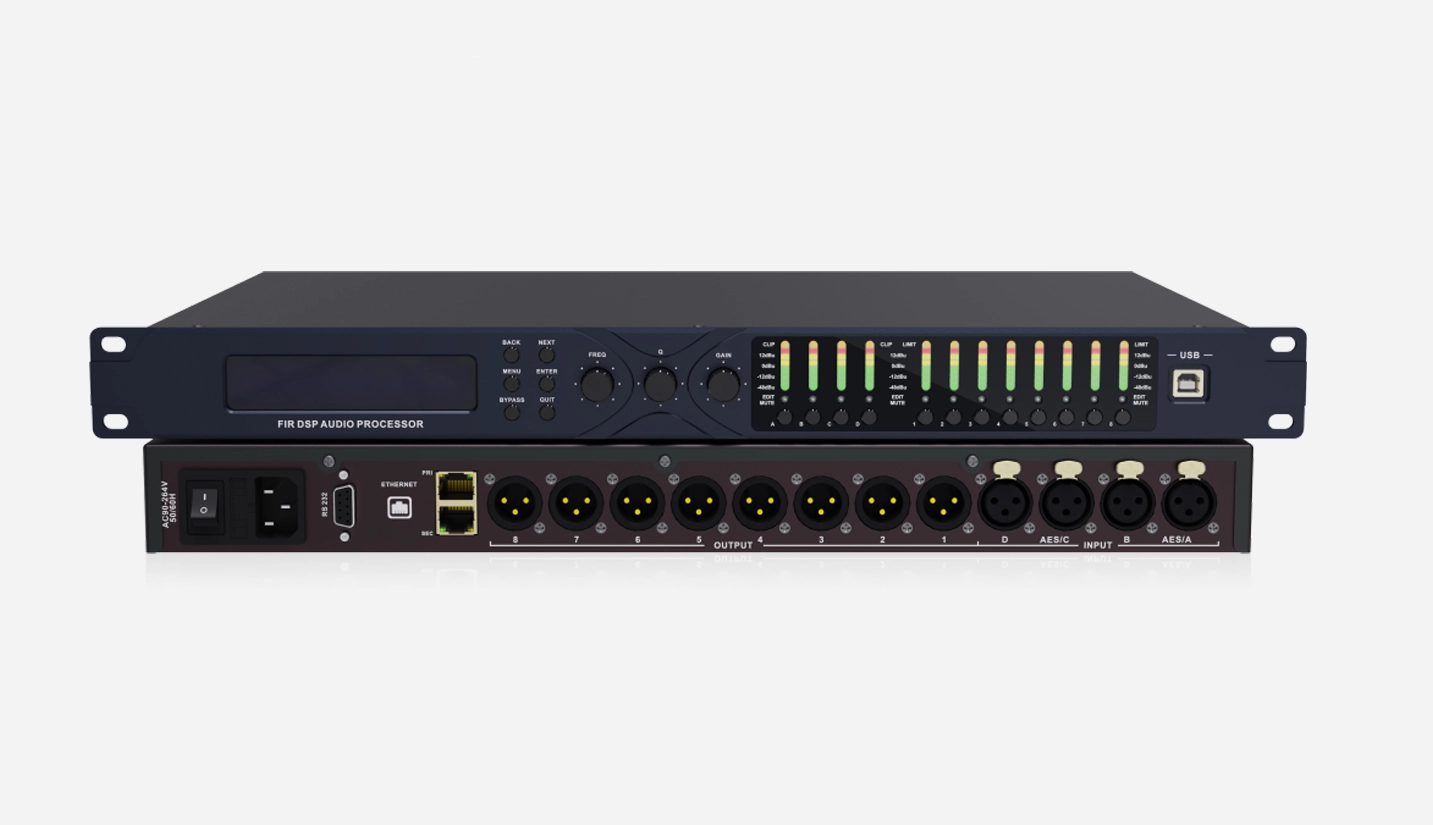

DP408P is a 4 Input & 8 Output Professional Audio Processor, integrated with high performance DSP process, Dynamic EQ, FIR automatic linear phase and other powerful function. This speaker processor supports a variety of input signal: Analog\AES3\Dante network audio. Standard FIR designer in Mconsole provide automatic linear magnitude and phase function, user can take an easy way to set their speakers parameters.
With RJ45\USB and RS232 connectors, PC software Mconsole provides user a easy way to control multiple devices. RS232 connectors support device being controlled from third-party system.
Model | DP408P |
DSP Process | |
Process | ADI SHARC 21489 450MHz |
System Delay | 2.1ms |
AD/DA | 24-bit 96KHz |
Analog Audio Inputs & Outputs | |
Input | 4 Channels Balanced |
Input Interface | XLR(Neutrik®) |
Input Impedance | 20KΩ |
Max Input level | 20dBu/Line |
Dante in/out | 4*4 Channels Optional |
Output | 8 Channels Balanced Line level |
Output Interface | XLR(Neutrik®) |
Output Impedance | 50Ω |
Audio Performance | |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line |
THD+N | -93dB(@0dBu,1kHz,A-wt)/Line |
Ground Noise | 20Hz-20kHz, A-wt, -93dBu |
SNR | 113dB(@16dBu,1kHz,A-wt)/Line |
Connect Ports & Indicators | |
USB | Type A-B, free driver |
RS232 | Serial Port Communication |
TCP/IP Interface | RJ-45 |
Indicator Light | Clip, Level, Edit, Mute |
Electrical and Physical | |
Supply | AC100V～240V 50/60 Hz |
Products Dimensions | 483mm×265mm×44.5mm |
Packaged Dimensions | 537mm×343mm×77mm |
Net Weight | 3.8kg |
Packaged Weight | 4.2kg |
Operating Temperature | -20℃-80℃ |
