3”×8 full-range drivers deliver clear and balanced sound.
Equipped with a 12” subwoofer for deep, powerful bass.
Built-in amplifier module ensures efficient system integration.
Supports Bluetooth, USB, and MP3 playback for versatile audio sources.
Dual XLR/TRS combo inputs support mic, line, and guitar signals.
Integrated DSP provides optimized audio processing.
Wide 100°×20° coverage ensures even sound distribution.
Solid midrange performance with high-strength wooden enclosure.
Compact and portable design, suitable for mobile use.
Ideal for banquet halls, auditoriums, gyms, bars, and public venues.

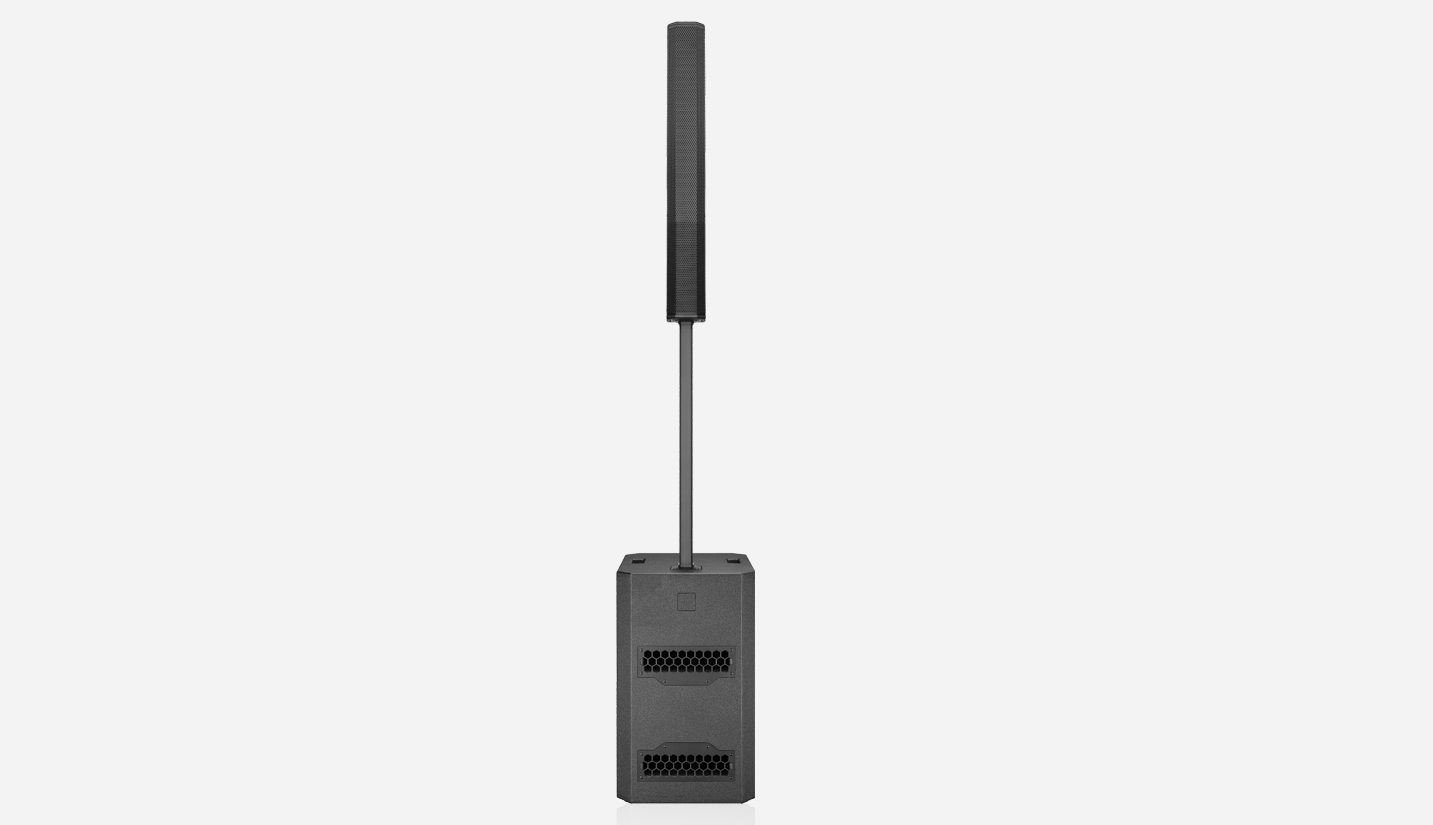

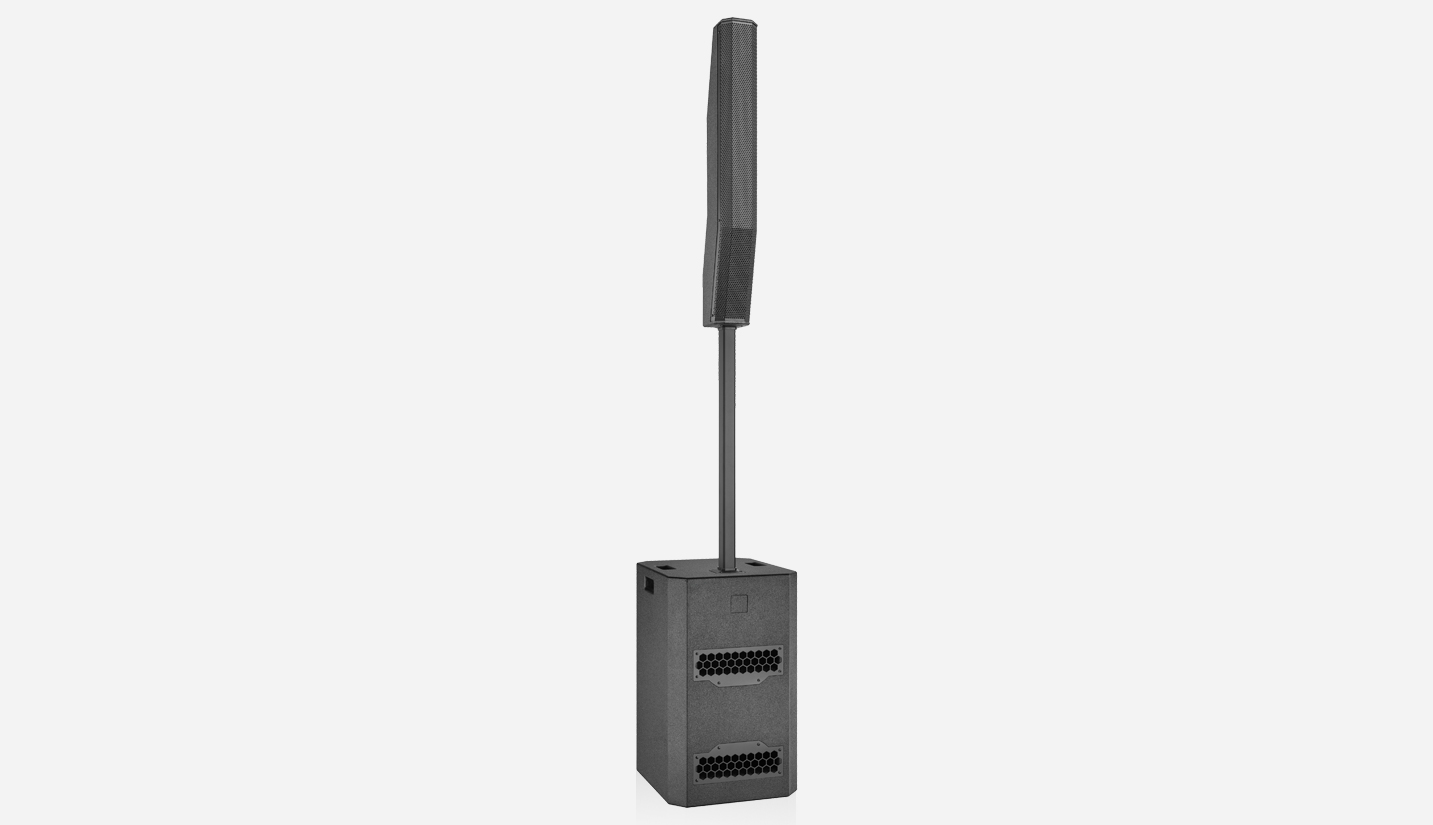

The LA0316 Active Column Speaker System with Subwoofer consists of eight 3-inch full-range speaker units and one 12-inch subwoofer, paired with a compact built-in amplifier module. It features a long-throw rubber-edge woofer and an integrated DSP processor with Bluetooth and multiple input options. With robust mid-range performance and a durable wooden enclosure, it is well-suited for large-scale speech reinforcement, musical applications, and small to medium-sized live performances in banquet halls, multi-function rooms, auditoriums, gyms, bars, malls, mobile events, and other public venues.
Model | LA0316 |
3”×8 Column Speaker | |
Drive Unit | 3”×8 (25mm Voice Coil) |
Rated Power | 160W |
Program Power | 320W |
Peak Power | 640W |
Impedance | 4Ω |
Frequency Response | 98Hz~16kHz |
Sensitivity | 96dB |
Max. SPL | 118dB |
Signal Input | 2×XLR/TRS "combo jack" mic/line/Hi-Z guitar |
Supported Function | BT/USB/MP3 |
Directivity Angle | 100°(H)×20°(V) |
Product Dimensions (H×W×D) | 810×105×140mm |
Net Weight | 6.5kg |
Gross Weight | 7.5kg |
Single 12” Subwoofer | |
Drive Unit | 12”×1 (65mm Voice Coil) |
Rated Power | 300W |
Program Power | 600W |
Peak Power | 1200W |
Impedance | 4Ω |
Frequency Response | 38Hz~200kHz |
Sensitivity | 96dB |
Max. SPL | 121dB |
Signal Input | 2×XLR/TRS "combo jack" mic/line/Hi-Z guitar |
Supported Function | BT/USB/MP3 |
Product Dimensions (H×W×D) | 600×365×450mm |
Net Weight | 21kg |
Gross Weight | 21.5kg |
