10×, 20×, or 30× Optical Zoom with 12× Digital Zoom options.
1/2.7'' or 1/2.8'' Exmor CMOS sensor for high-quality imaging.
Up to 3.75 Megapixels for sharp and detailed visuals.
Wide horizontal viewing angles up to 72°.
2D & 3D Digital Noise Reduction for clear images in low light.
0.5 lux minimum illumination for excellent low-light performance.
USB 2.0, HDMI, 3G-SDI, and IP real-time streaming outputs.
RS232, RS485, and RJ45 for flexible control and integration.
DC 12V JEITA standard or PoE power supply for easy installation.
-178° to +178° horizontal rotation, -30° to +90° vertical rotation.
Supports up to 255 preset positions and 9 remote controllers.

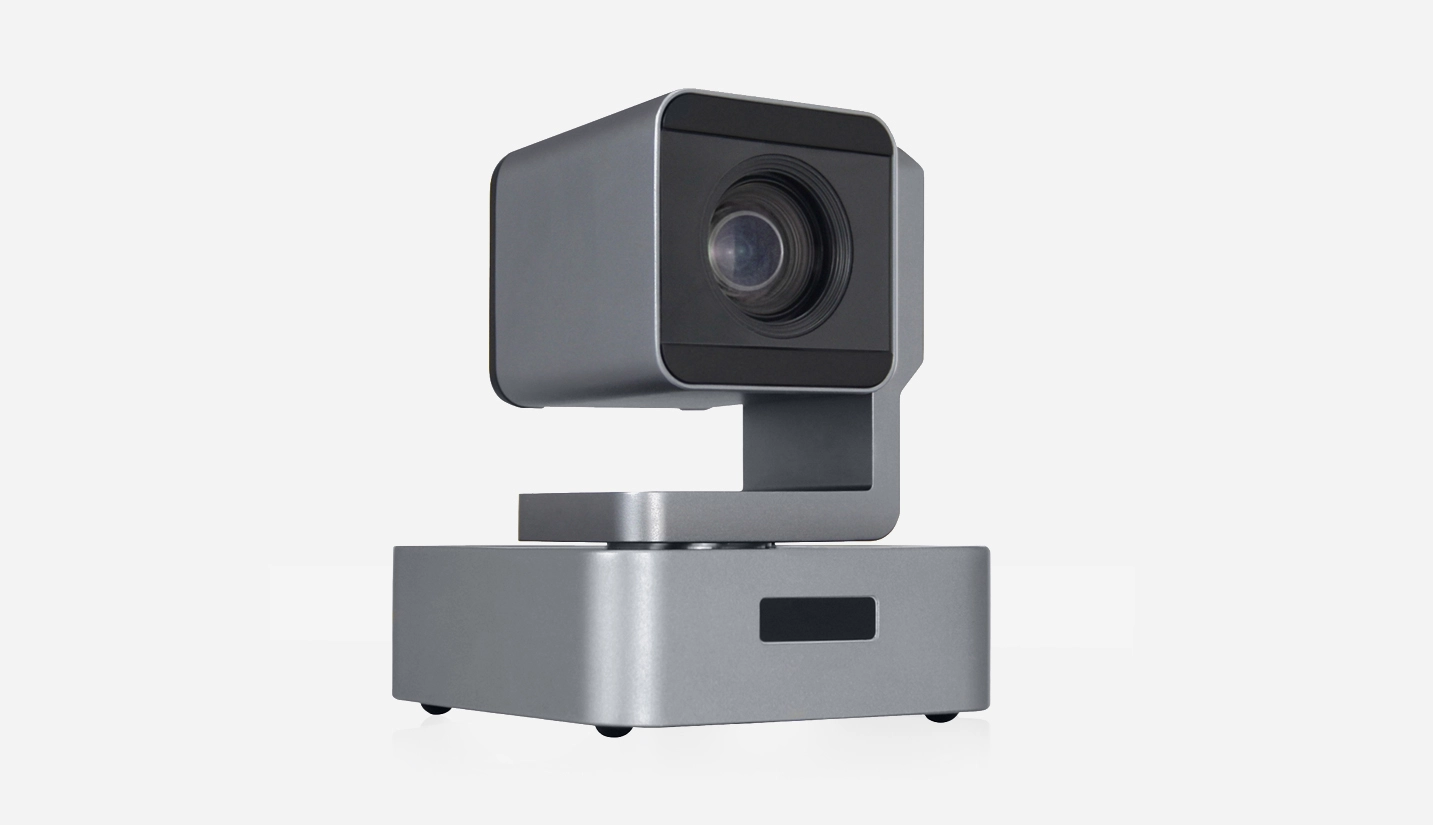

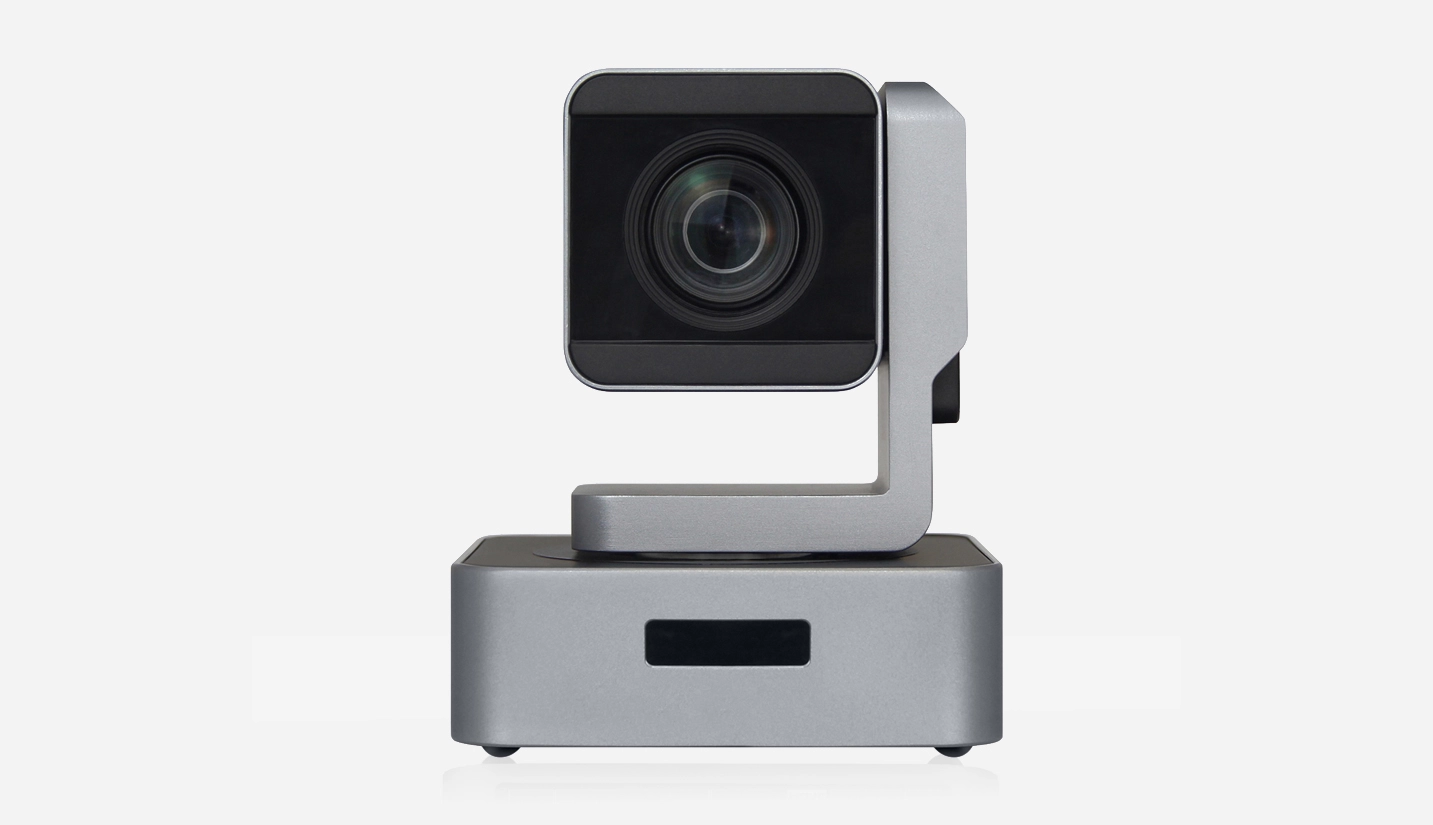

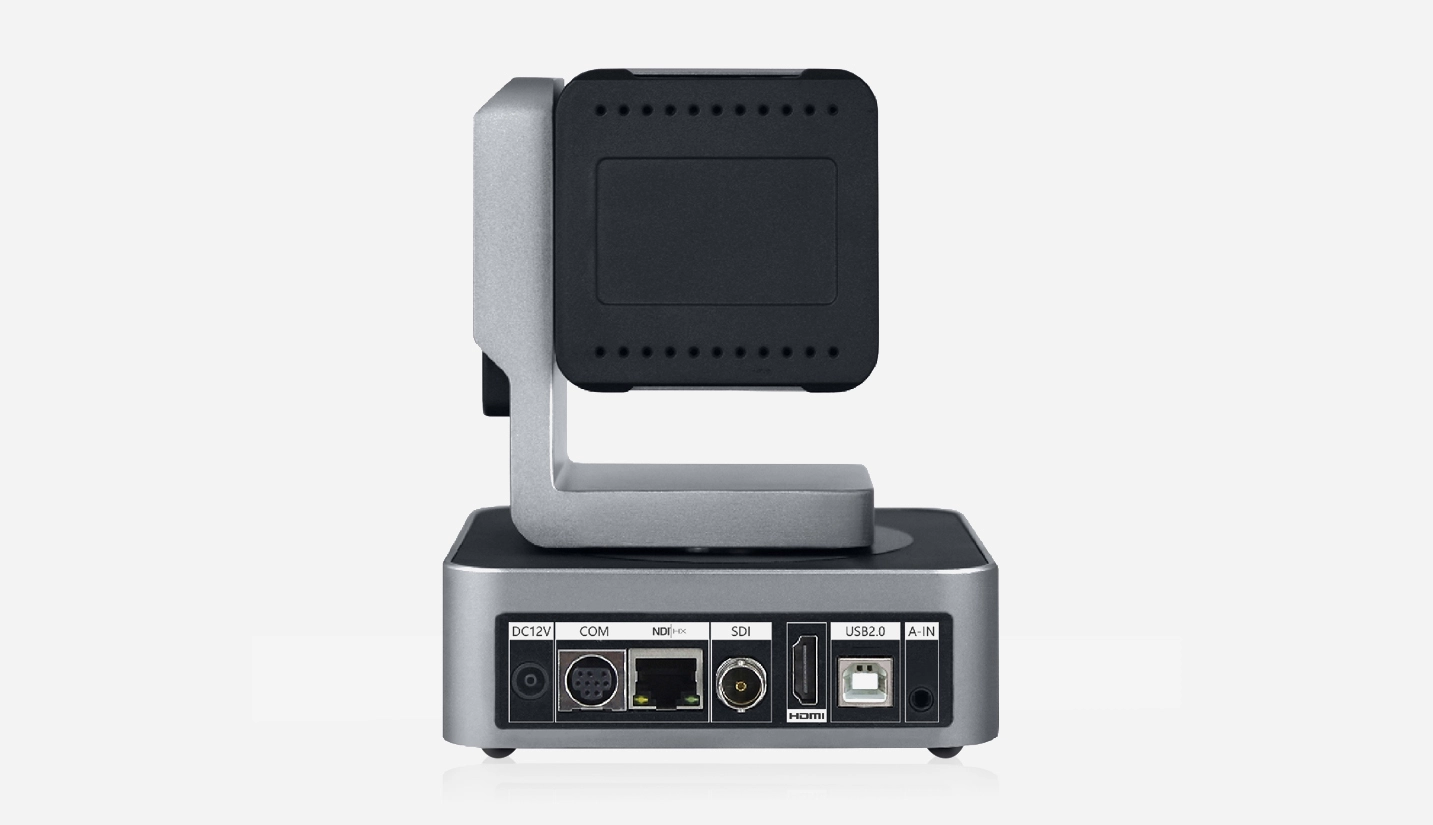

The camera D6283II is designed for high-performance video applications, featuring infrared remote control, a power indicator, and a DC12V power interface for stable operation. It offers versatile connectivity with RS485/RS232 communication ports, an RJ45 port for IP streaming and PoE power supply, and multiple video output options, including 3G-SDI, HDMI, and USB 2.0. Additionally, it supports audio input, ensuring seamless synchronization of video and sound. With its advanced features and flexible installation options, this camera is ideal for professional broadcasting, conferencing, and remote communication needs.
Model | D6283II | |||
Camera Parameters | Lens | 10× Optical Zoom | 20× Optical Zoom | 30× Optical Zoom |
Image Sensor | 1/2.7'' Exmor CMOS | 1/2.8'' Exmor CMOS | 1/2.8'' Exmor CMOS | |
Effective Pixel | Approx. 2.38 Megapixels | Approx. 3.27 Megapixels | Approx. 3.75 Megapixels | |
Focal Length | f/5.1mm-51mm, F=1.6(W)-3.5(T) | f/4.7mm-94mm, F=1.6(W)-3.5(T) | f/5.2mm-148.4mm, F=1.3(W)-4.8(T) | |
Horizontal Viewing Angle | Approx. 72° | Approx. 60.2° | Approx. 65° | |
Minimum Illumination | 0.5 lux / 0.095 lux | |||
Shutter | 1 to 1/10,000 sec | |||
Noise Reduction | 2D & 3D Digital Noise Reduction | |||
Mirror/Flip | Supported | |||
Other Parameters | HD Video Output | USB 2.0×1, HDMI×1, IP (Real-time Streaming)×1, 3G-SDI×1 | ||
Audio Input | 1-ch 3.5mm Audio Interface | |||
Communication Interface | RS232 IN/OUT, RJ45, RS485 | |||
Power Interface | DC 12V JEITA Standard or PoE Power Supply (Power over Ethernet) | |||
Operation | Horizontal Rotation | -178°~+178° | ||
Vertical Rotation | -30°~+90° | |||
Max. Preset Positions | Supports up to 9 Remote Controllers | |||
Supports up to 255 Devices via VISCA Protocol | ||||
Product Dimension(L×W×H) | 120mm×120mm×145mm | |||
Working Temperature | -10°~+50° | |||
Net Weight | 1.4kg | |||
Installation Method | Wall Mount, Ceiling Inverted Mount, Tripod Mount | |||
