Passive conference unit powered by the central controller (DC 24V).
User-friendly operation with clear and natural audio.
Quick and easy installation with sleek, modern design.
Chairman unit features a priority button to override delegate microphones.
Multiple chairman units can coexist without wiring position limitations.
Equipped with a DIN8 microphone interface.
LED indicator displays real-time working status.
Microphone capsule ensures accurate voice pickup.
Microphone switch enables simple control of speaking status.

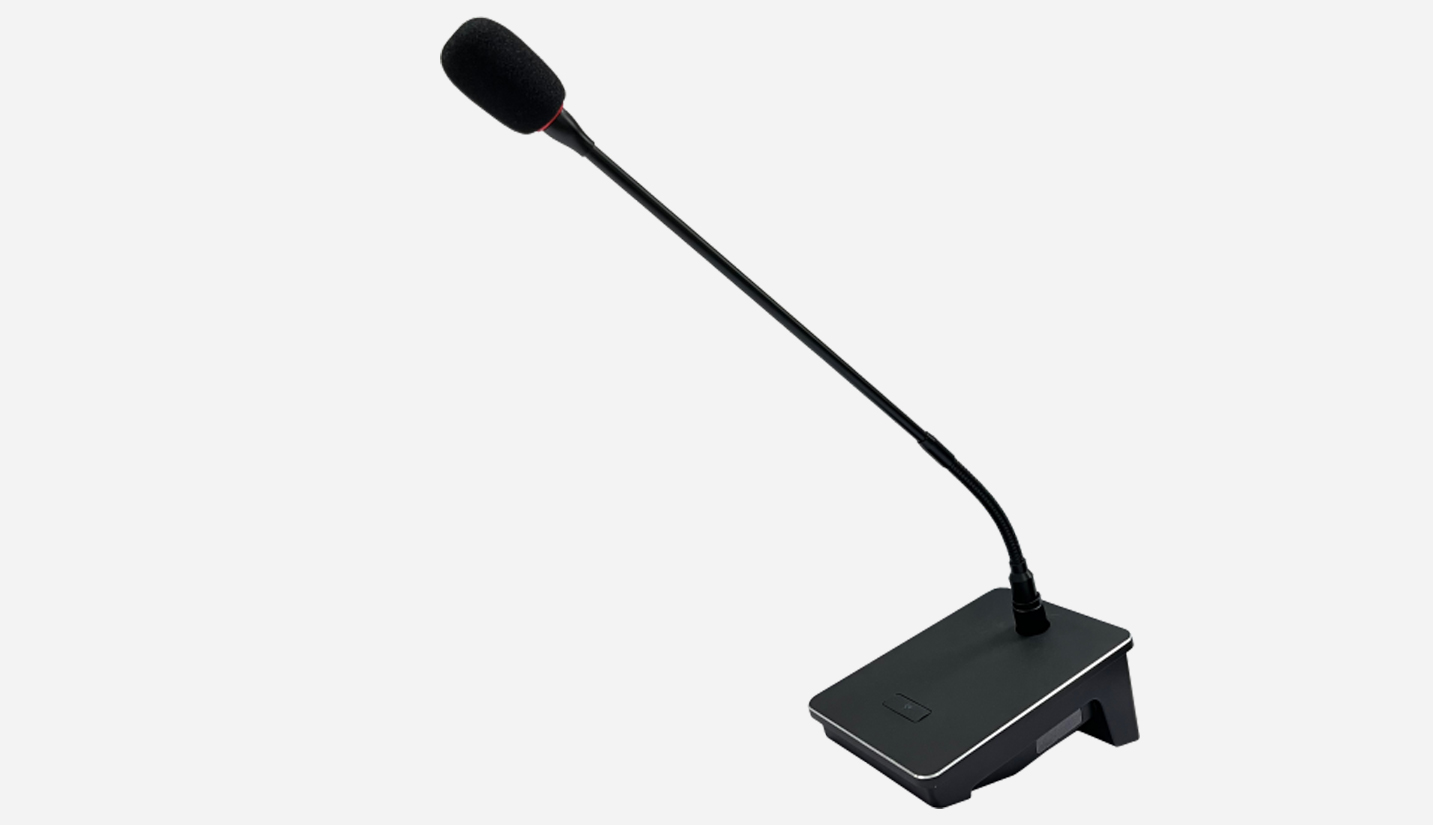

The conference unit serves as the essential device for participants to engage in and operate the conference. It is a passive device powered by the central controller, with a 24V input. The unit is user-friendly, delivers clear audio, features easy installation, and boasts a sleek modern design.
The chairman unit includes a priority button and status indicator. When pressed, the priority button can mute or turn off other speaking units, allowing the chairman to speak without limitations. It offers full authority to manage meeting order. Multiple chairman units with priority rights can coexist in the same system, with no restrictions on wiring positions. An LED indicator clearly shows the current working status.
Model | D5923 | D5924 |
Frequency Response (±3dB) | 160Hz-16KHz | |
Static Power Consumption | <0.5W | |
SNR | ＞70dB | |
Crosstalk Attenuation | ＞75dB | |
Harmonic Distortion | ＜0.5% | |
Input Sensitivity | 42mV±5mV | |
Input Impedance | 2KΩ | |
Working Voltage | DC24V Power Supplied by the Host | |
Package Size | 485×390×110mm | |
Gross Weight | 2.5Kg (2PCS/Per Carton) | |
