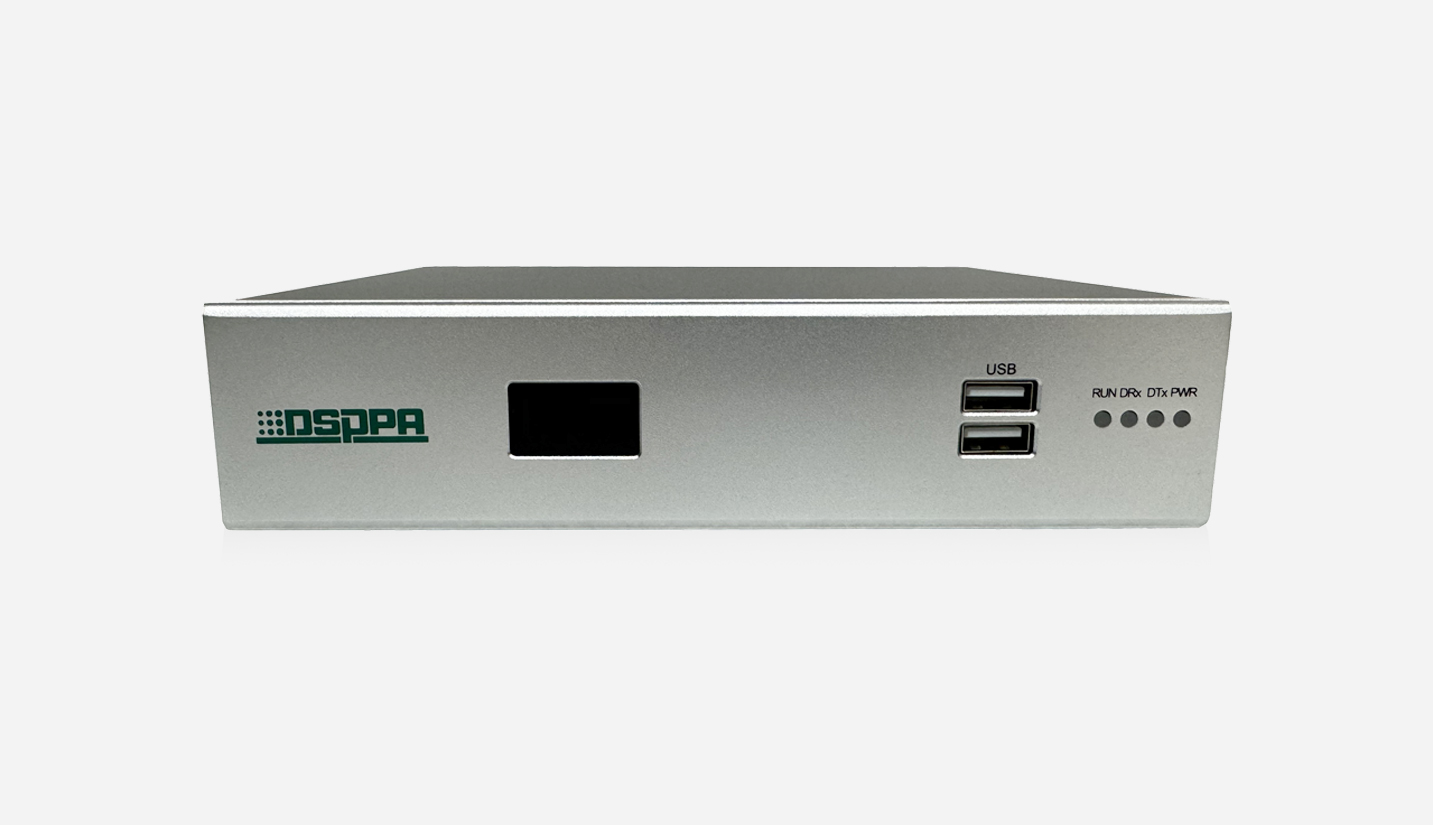

Distributed Digital High-Definition Terminal D6919/D6919C/D6919S - 翻译中... D6919D/D6919LED/D6919E/D6919ES

Flexible configuration, multi-functional integration: Adopting an integrated input-output design, it can be flexibly configured as an input terminal, output terminal, KVM input terminal, or KVM output terminal according to actual needs, meeting diverse scenario requirements.

Ultra-high-definition signal processing with strong compatibility: As an input node, it supports multiple high-definition video signal inputs including 4K@60fps, 4K@30fps, 1080P@60fps, and 1080P@30fps, while maintaining backward compatibility. It enables 4K@60fps YUV444 capture and encoding to achieve simultaneous multi-stream transmission.  As an output node, it supports high-definition outputs at 4K@60fps, 4K@30fps, 1080P@60fps, and 1080P@30fps, while remaining backward compatible. Additionally, it supports 4K@60fps YUV444 decoding and display.

High-efficiency encoding/decoding and multi-screen processing: As an output node, it supports H.264/H.265 encoding/decoding at 4K@60fps, capable of simultaneously decoding 4 channels of 4K@60fps or 16 channels of 1080P@60fps video streams. It also supports various display modes such as tiling, scaling, overlaying, and splitting to meet the demands of complex scenarios.

Real-time preview, precise control: The client enables real-time preview of input signals, allowing users to monitor signal status at any time, ensuring efficient and convenient operation.

Built-in station logo function, convenient and easy to use: When serving as an input node, it can add images as station logos to input sources without requiring additional equipment. It supports displaying the logo in the top-left corner, bottom-left corner, or custom X/Y coordinate positions. Users can upload new images or directly use previously uploaded images for setup, making the operation simple and intuitive.

Local high-definition background images, easy setup: No additional equipment required, supports directly loading local images as display wall backgrounds. Users can flexibly enable or disable the background image feature through the software, with simple and efficient operation.

High-efficiency KVM functionality with cross-platform support: Enables takeover and push capabilities to display content on any monitor or large screen; Achieves seamless KVM cross-screen roaming, optimizes operational experience, and offers full compatibility with system platforms including Windows, Linux, Mac, and Kylin.

Self-developed splicing algorithm with seamless synchronization: Built-in video splicing synchronization algorithm eliminates the need for additional splicing processors, enabling direct connection to LED, LCD, and DLP splicing screens. Achieves tear-free synchronization imperceptible to the human eye, delivering smooth and natural display effects.

Multi-functional central control interface with programming support: Equipped with 1 RS-485 port, 2 RS-232 ports, 2 weak relay ports, 3 IO ports, and 4 infrared output interfaces, supporting custom programming to meet complex control requirements.

Ultra-low latency transmission for smooth experience: The entire process from the source image to input node capture, H.265 encoding, network transmission, output node decoding, and final display can achieve latency as low as 30ms, ensuring real-time performance and fluidity.

This product supports dual-network backup transmission, featuring 1 Ethernet port (Gigabit) and 1 optical port (optical module not included by default and needs to be purchased separately), enabling dual-network backup to ensure secure data transmission and interaction.
