Ultra-fine 2mm pixel pitch for high-definition indoor display
SMD1515 RGB LEDs with wide 110° viewing angle and high brightness ≥800cd/㎡
16-bit grayscale with high refresh rate ≥3840Hz (PWM driving) for smooth, flicker-free images
Adjustable color temperature: 1000K–20000K and brightness range 0–255
Wide 170° field of view for optimal viewing experience
Reliable indoor operation: -20°C to 60°C, 10%-90% RH non-condensing
HUB75D (IDC16) signal interface with DC5V ±10% operating voltage
Supports brightness and chroma calibration for consistent image quality

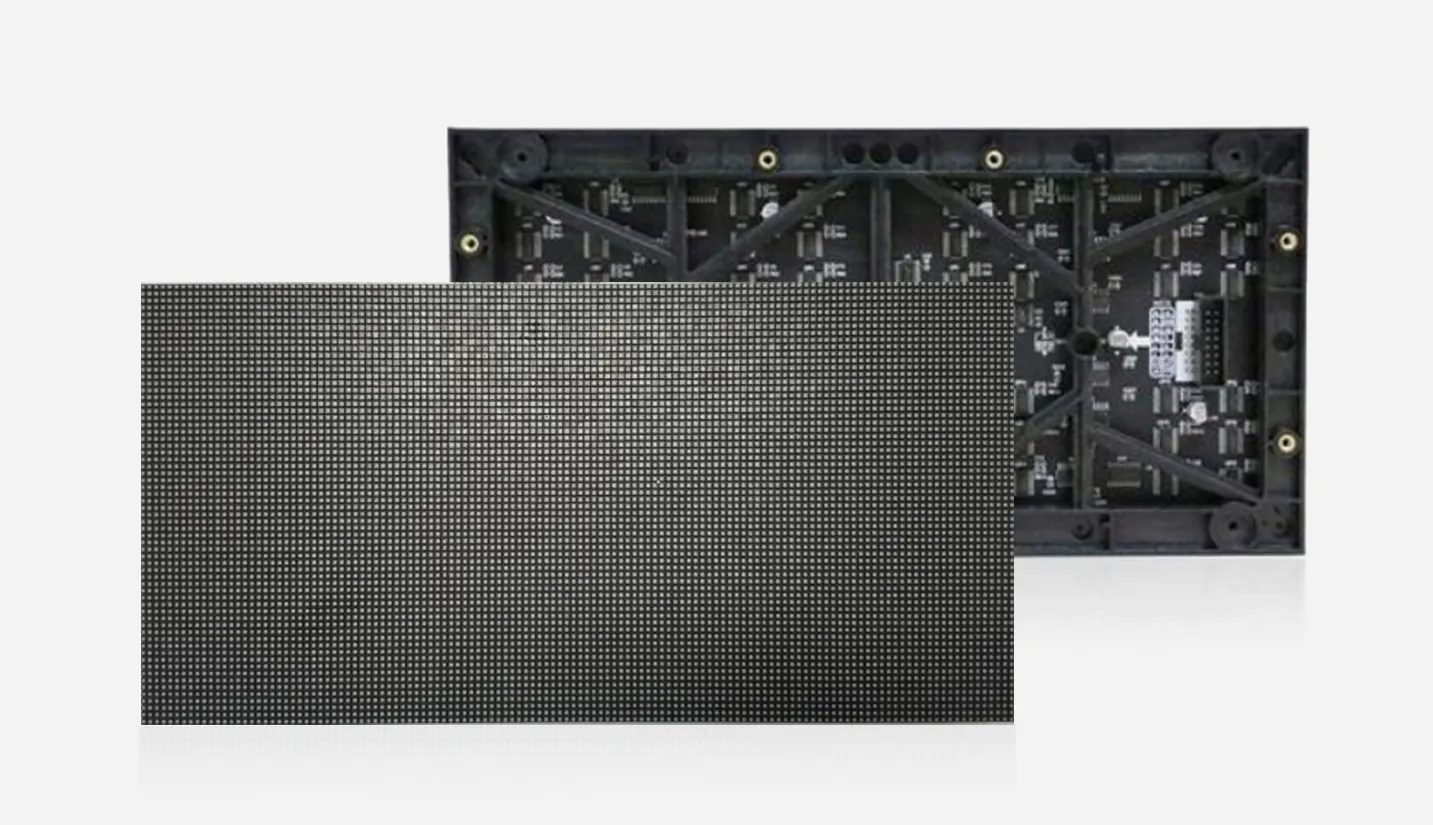

The DP-N200BC Indoor P2 Full-Color LED Module is a high-definition, ultra-fine-pitch indoor LED display module, engineered for applications demanding exceptional image clarity at close viewing distances. With a 2mm pixel pitch and SMD1515 RGB LEDs, the module delivers vibrant colors, high brightness, and a wide 170° field of view. Featuring 16-bit grayscale, a high refresh rate of ≥3840Hz (PWM driving), and adjustable color temperature from 1000K to 20000K, it ensures smooth, vivid visuals for indoor environments such as control rooms, exhibition halls, conference rooms, and other high-resolution digital signage applications.
Product Model | Color | IF (mA) TEST | Rd (nm) Typ | Iv (mcd) Typ | Vf (V) Typ | View Angle (deg.) |
SMD1515 | Red | 8 | 620 | 50 | 2.0 | 110 |
Green | 5 | 525 | 170 | 3.0 | 110 | |
Blue | 3 | 470 | 23 | 3.0 | 110 | |
Pixel Pitch | 2mm | |||||
Pixel Density | 250000dots/㎡ | |||||
Unit Board Resolution | 128 × 64 pixels | |||||
Unit Board Dimensions | 256mm × 128mm × 14.6mm (Width×Height×Thickness) | |||||
Unit Board Weight | 0.4kg | |||||
Drive Type | 16-bit Constant Current (PWM) | |||||
Scanning Method | 1/32 scan | |||||
Operating Voltage | DC5V±10% | |||||
Maximum Current | 5A (Typical)① | |||||
Maximum Power Consumption | 25W (Typical)② | |||||
Power Interface | VH4 | |||||
Signal Interface | HUB75D (IDC16) | |||||
Max. Brightness | ≥800cd/㎡ | |||||
Color Temperature | 1000K-20000K (Adjustable) | |||||
Field of View | 170° | |||||
Optimal Viewing Distance | ≥2m | |||||
Grayscale Level | ≥16 Bit | |||||
Brightness and Chroma Calibration | Support | |||||
Refresh Frequency | ≥3840Hz③ | |||||
Operating Temperature | Indoor | |||||
Brightness Range | 0-255 (Adjustable) | |||||
Service Life | 100,000 Hours | |||||
Operating Temperature | -20℃-60℃ | |||||
Operating Humidity | 10%-90%RH Non-condensing | |||||
Storage Temperature | -40℃- 80℃ | |||||
