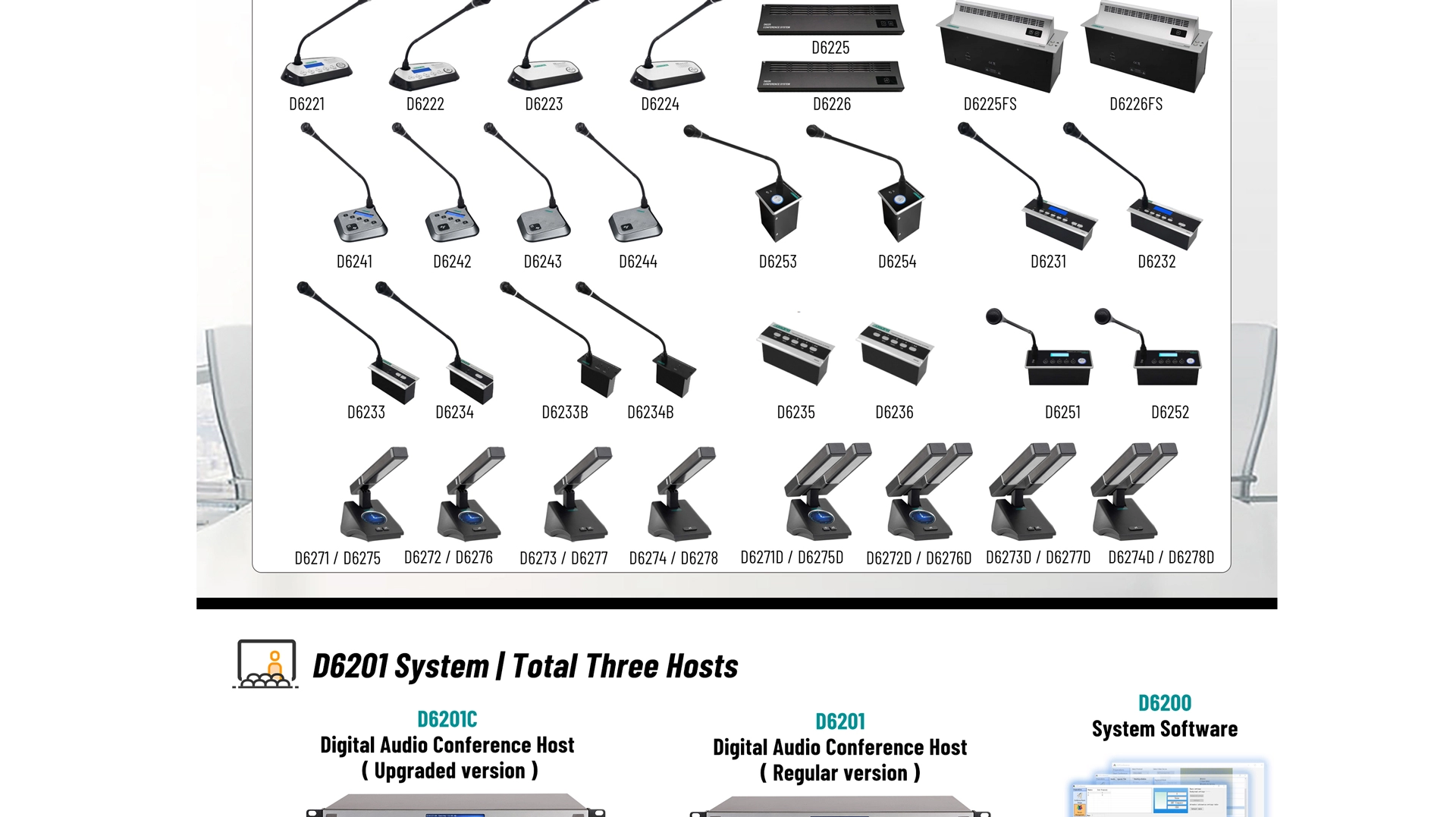

The conference controller allows connection of a maximum number of 128 conference units and with the extension controller, the conference system allows connection of up to 4096 units.
Connection through 8-core aviation plugs in a series mode.
Limitation of number of spokesman at a same time (1/2/3/4/5/6).
Vote function, timed speech and other data management functions.
4.3" TFT display/touch screen.
Users can adjust the system time and back light duration, in order to save energy.
Messages on the system LCD screen may be in Chinese or English
Users can set a number of VIP speech units, which when the total number of activated units is less than the limit of 20 (20 in FREE mode and 10 in other modes), can be activated and if free of any limitation of conference mode. A maximum number of 30 VIP units are allowed.
The system supports five conference modes, namely FIFO, NORMAL, VOICE, FREE and APPLY.
The system has embedded a DSP, including low cut, frequency shifter and equalizer.
The system can realize recording of the entire conference and provides two recording modes, namely automatic recording and manual recording, and the user can choose the desired one.
The system provides unit inspection function, with which inspection to the conference units may be realized automatically or manually.

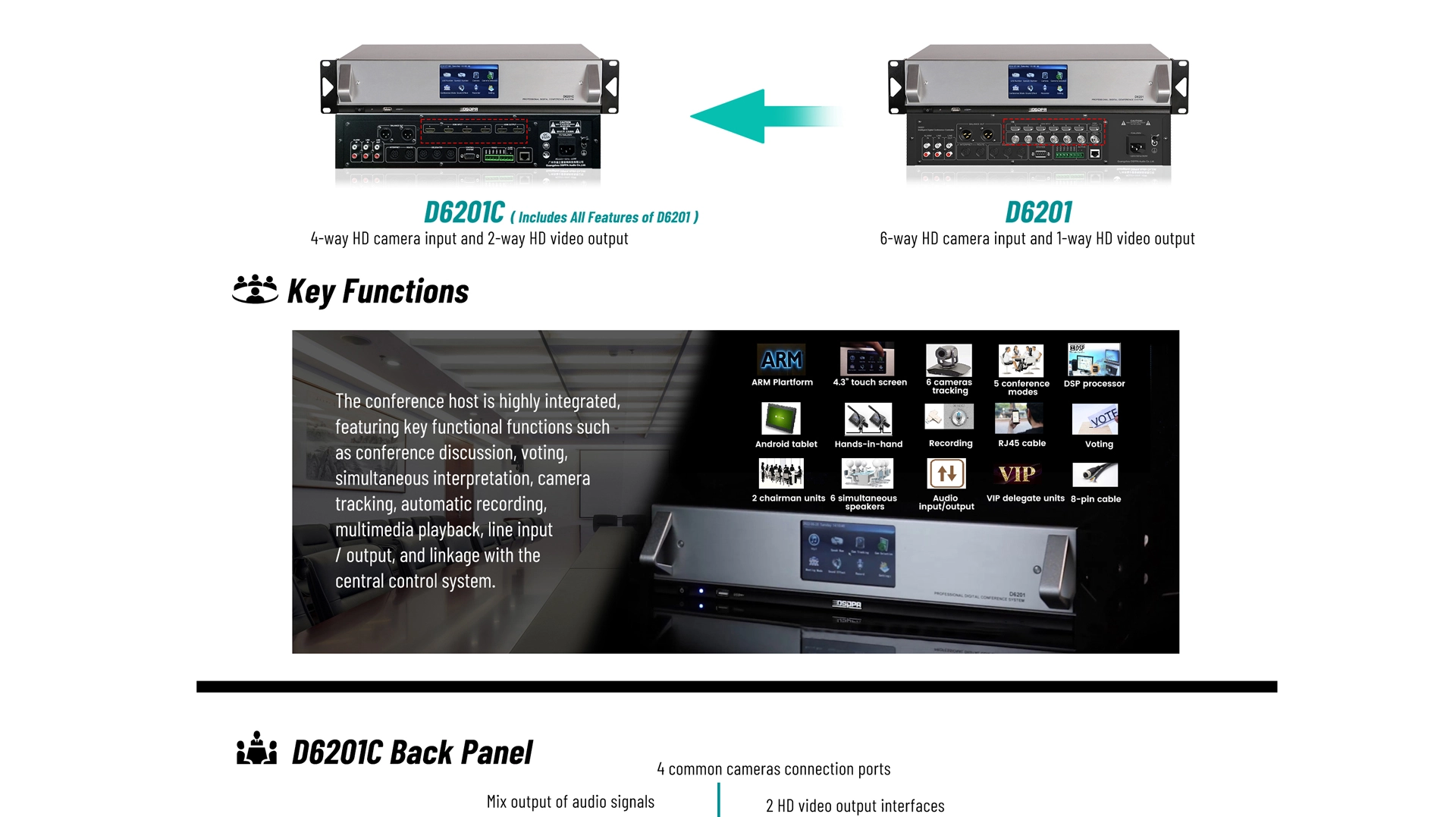

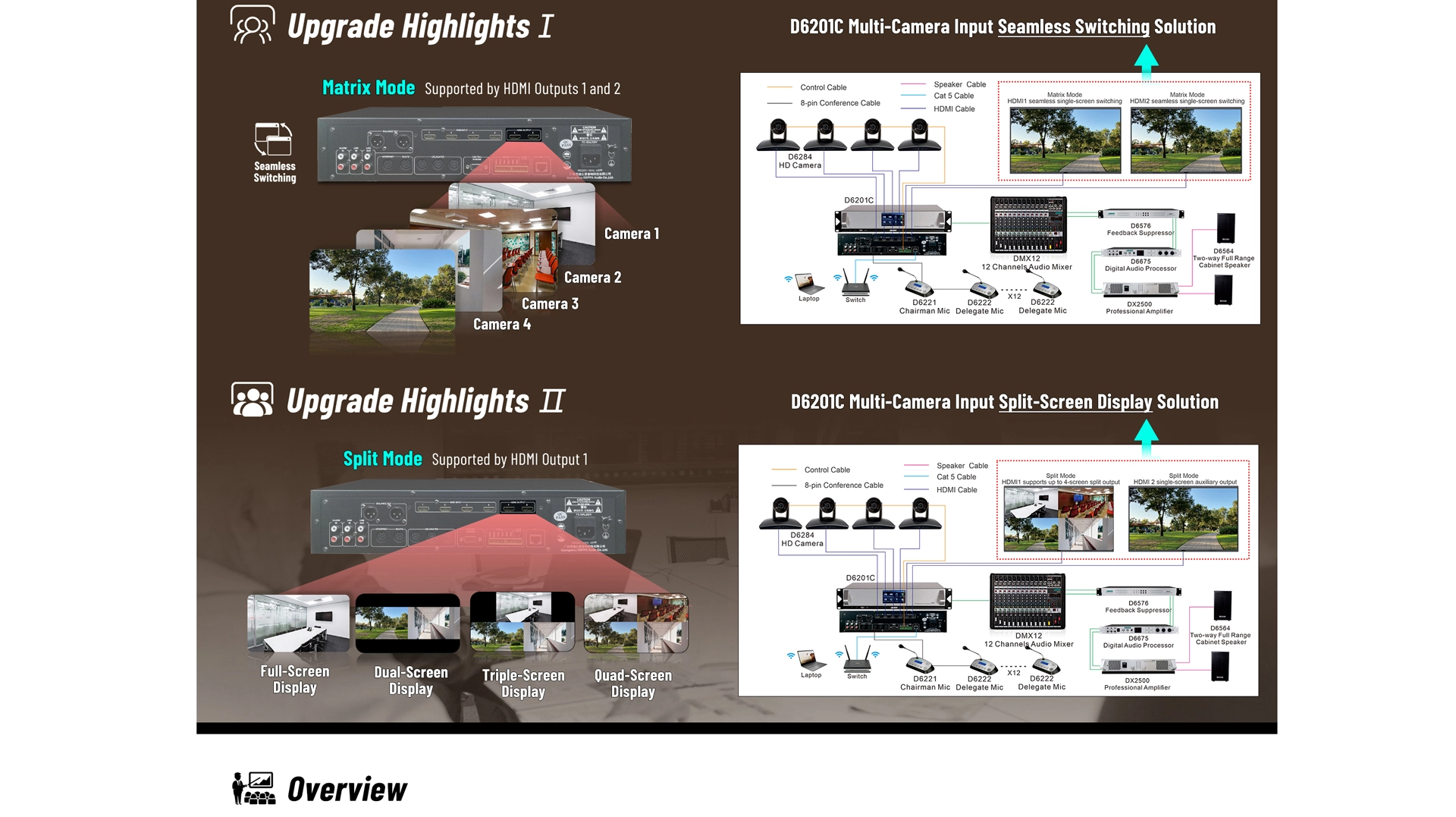

The host is equipped with 4 HDMI camera interfaces. HDMI output port 1 supports full-screen to 4-split-screen display, and HDMI output ports 1 and 2 can achieve seamless switching of 4 cameras.
The 8-core aviation socket: one is for connection of interpreter controller, anther for connection to extension controller and three for conference units.
Cannon socket: It is a secondary audio output port and is used to realize parallel output together with two secondary audio output RCA sockets (LINE OUT) and for connection to specialized amplifiers.
The system also provides a +5V trigger voltage warning input port, which, together with the warning audio input port, is used to realize warning breaking in function.
The system provides RJ45 ports under TCP/IP protocol, which is used for connection to the network where a PC application program will be used to control all functions of the system.
The equipment casing is made from metal materials and all the lines and casing are properly grounded, so the system has an anti-static of 10kV in case of physical contact and 15kV in case of air contact.
The system adopts high-grade appearance design, 2U standard chassis, and can be installed in a 19 inch standard cabinet.

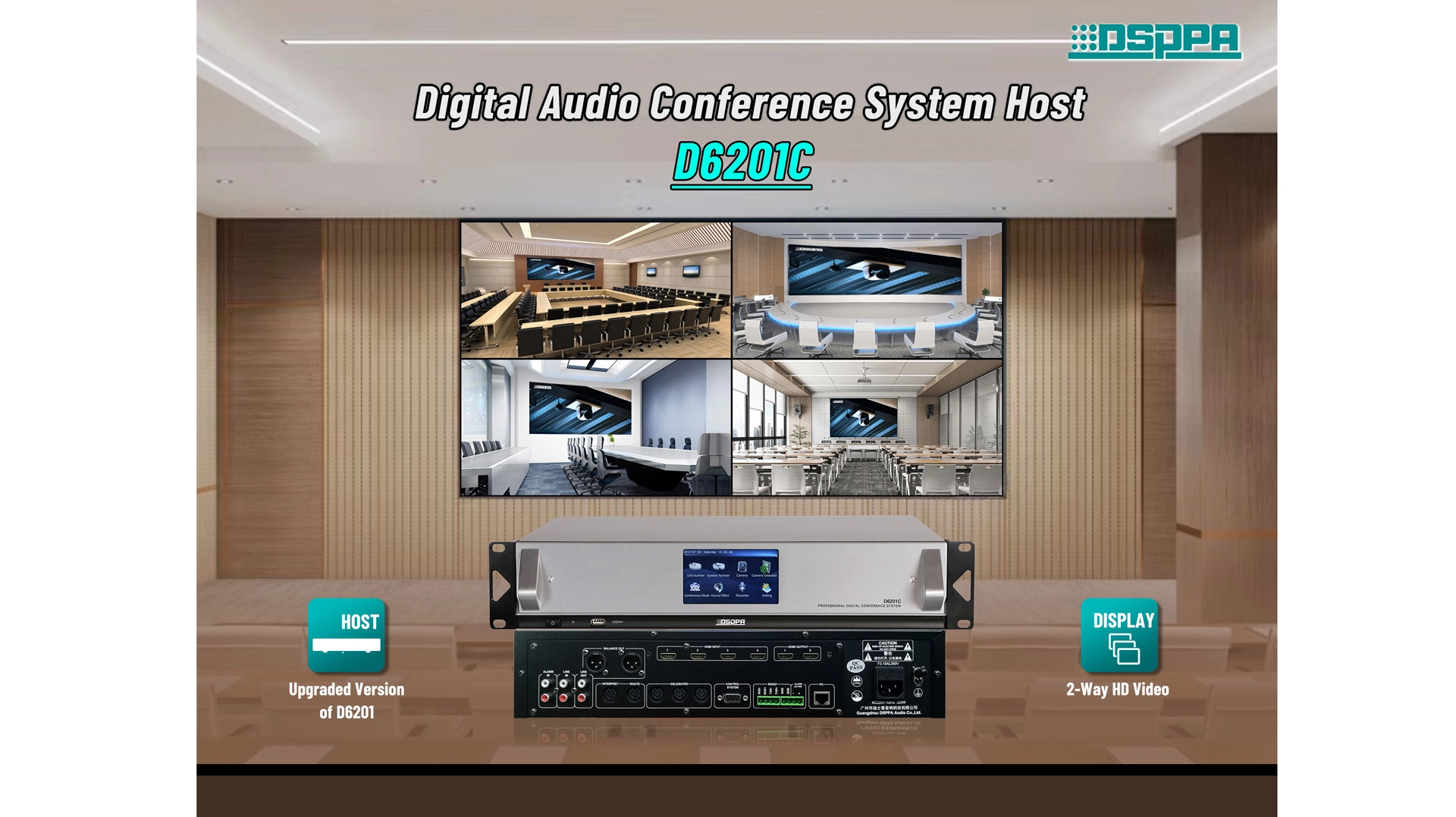

The D62 series digital conference system is based on the ARM9 embedded system platform, using high-performance DSP digital audio processing technology and high-fidelity circuit design, including discussion, voting, conference sign-in, simultaneous interpretation, infrared voice distribution, remote telephone conference, automatic camera tracking, camera seamless switching and other functions. This host supports 4-way HD camera input and 2-way HD video output. The conference controller can power all conference units, uses 8-core wire connection, and is the core equipment of the conference system.

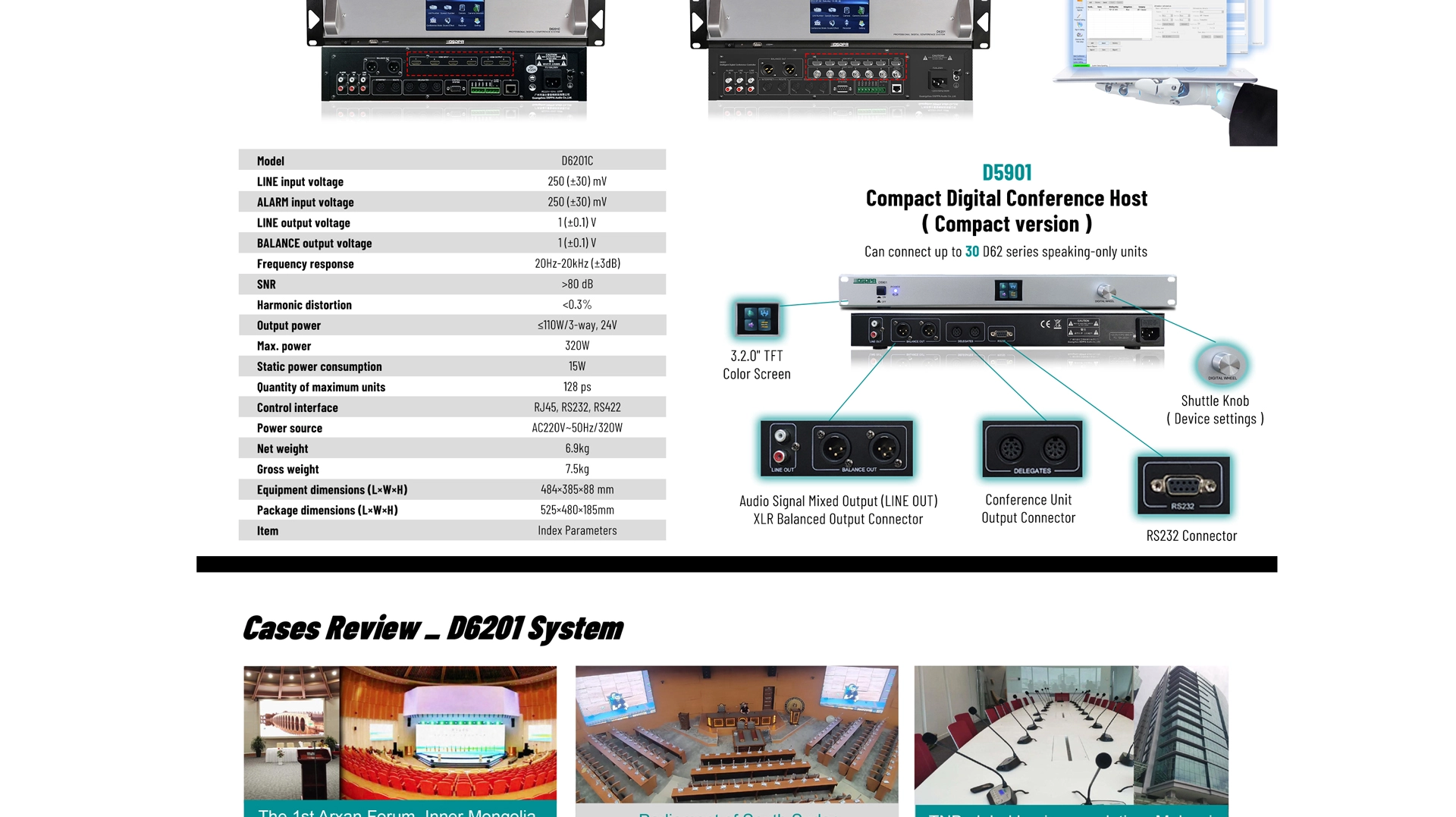

Model | D6201C |
LINE input voltage | 250 (±30) mV |
ALARM input voltage | 250 (±30) mV |
LINE output voltage | 1 (±0.1) V |
BALANCE output voltage | 1 (±0.1) V |
Frequency response | 20Hz-20kHz（±3dB） |
SNR | >80 dB |
Harmonic distortion | <0.3% |
Output power | ≤110W/3-way, 24V |
Max. power | 320W |
Static power consumption | 15W |
Quantity of maximum units | 128 ps |
Control interface | RJ45, RS232, RS422 |
Power source | AC220V~50Hz/320W |
Net weight | 6.9kg |
Gross weight | 7.5kg |
Equipment dimensions(L×W×H) | 484×385×88 mm |
Package dimensions(L×W×H) | 525×480×185mm |
Item | Index Parameters |
