4mm pixel pitch with 80×40 resolution for sharp, vivid outdoor visuals.
High brightness ≥6000cd/㎡ for excellent visibility under strong sunlight.
High refresh rate ≥3000Hz for smooth, flicker-free image performance.
16-bit constant current driving with 14-bit gray scale and brightness/color calibration support for accurate, consistent color.
Wide viewing angle (≤140°) and load range up to 128×256 pixels for flexible installation

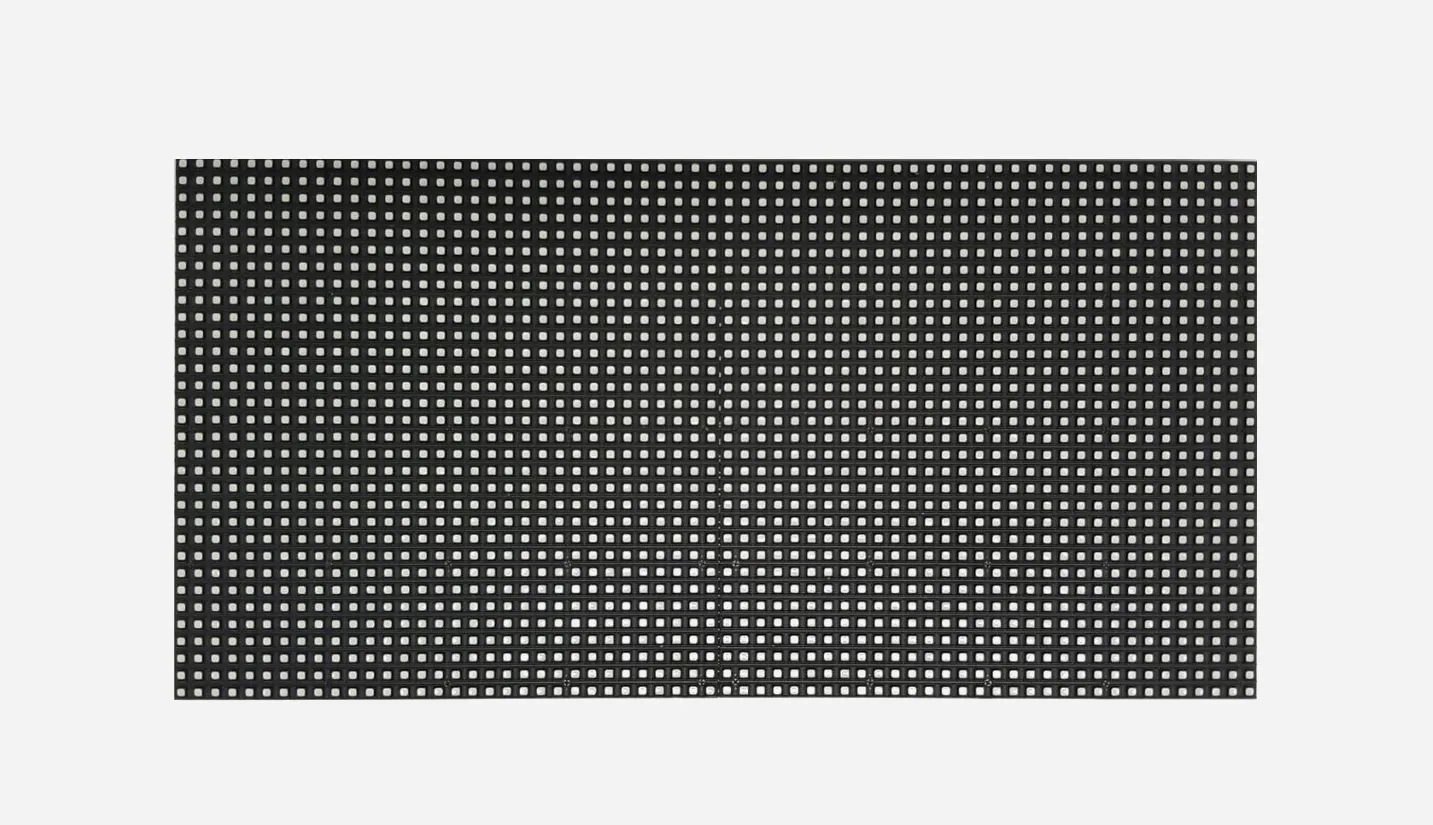

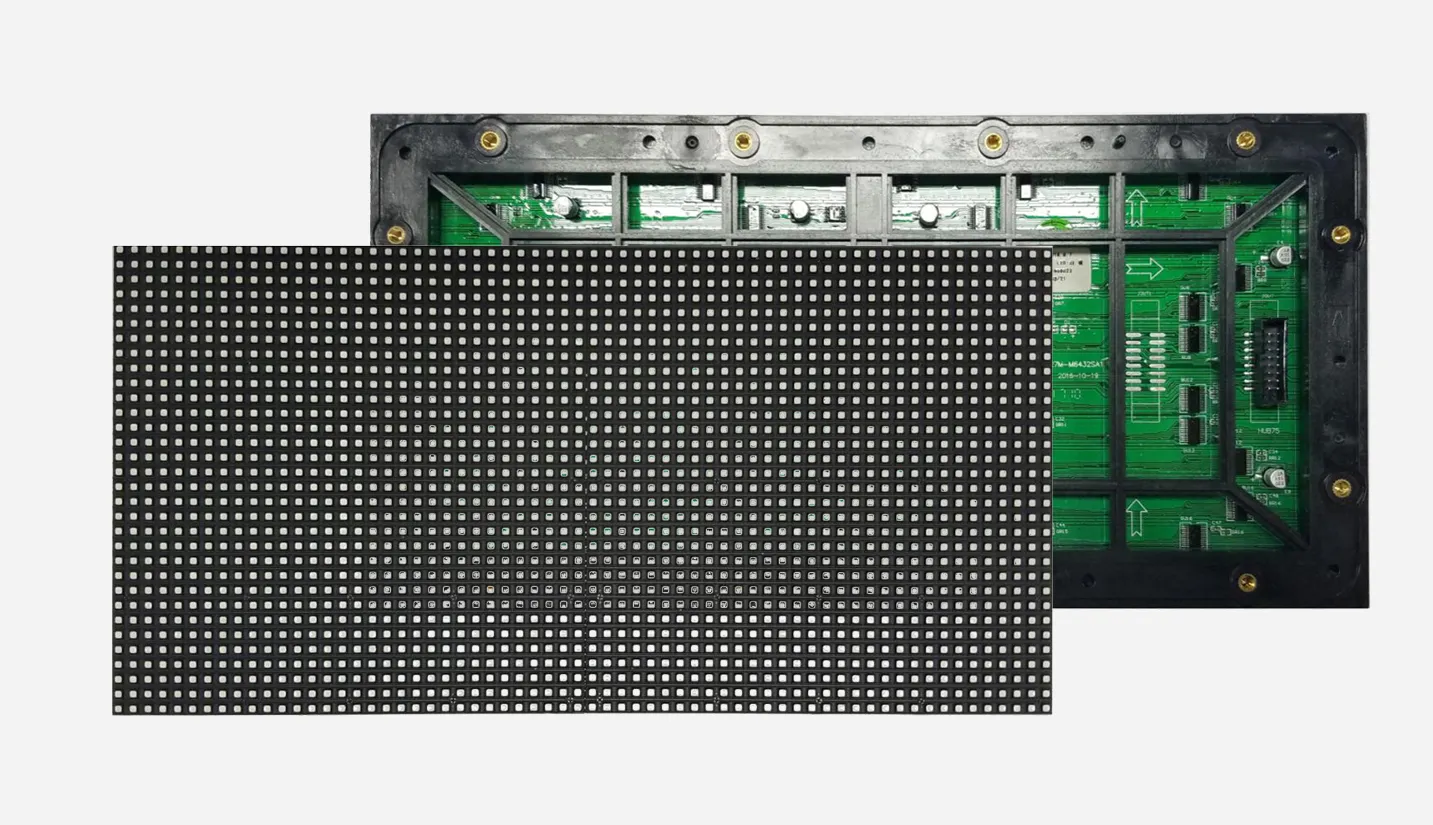

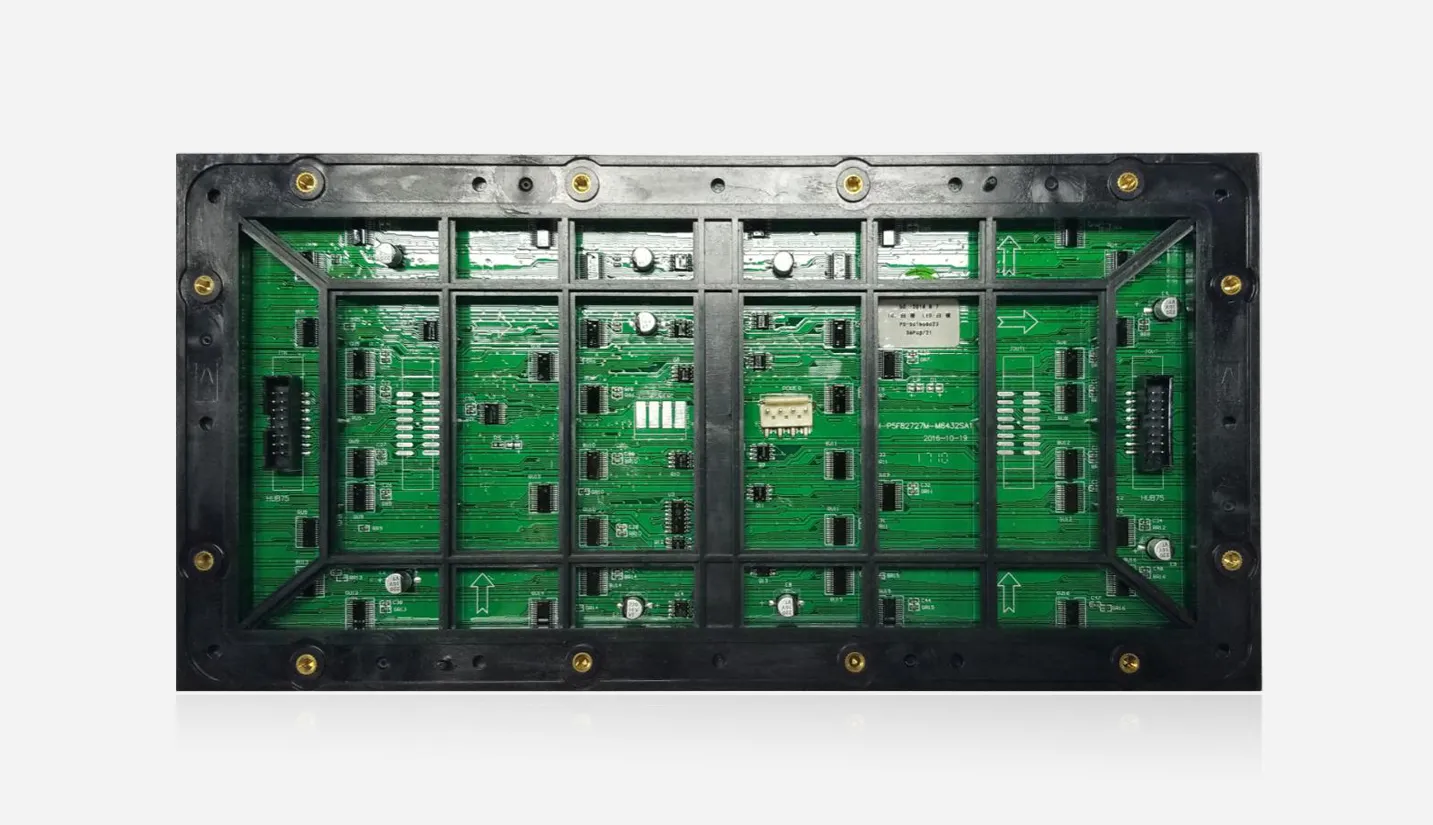

The DP-W400GF Outdoor P4 Full-Color LED Module features a 4mm pixel pitch and 80×40 resolution, delivering sharp, vivid visuals in outdoor environments. With high brightness (≥6000cd/㎡), high refresh rate (≥3000Hz), 16-bit constant current driving, 14-bit gray scale, and brightness/color calibration support, it ensures smooth, flicker-free, and accurate display performance.
Model | DP-W400GF |
Pixel Pitch | 4mm |
Pixel Density | 62500 dots/㎡ |
Module Resolution | 80×64 pixels (W×H) |
Module Dimensions | 320×160×17mm (W×H×D) |
Module Weight | Approximately 450g |
Driving Method | 16-bit constant current |
Scan Mode | 1/10 |
Operating Voltage | DC5V±10% |
Maximum Current | 9A (typical) ① |
Maximum Power Consumption | 45W (typical) ② |
Power Interface | VH4 |
Signal Interface | HUB75 (IDC16) |
Maximum Brightness | ≥6000cd/㎡ |
Color Temperature | 9000±500K |
Viewing Angle | ≤140° |
Optimal Viewing Distance | ≥4m |
Gray Scale | 14-bit |
Brightness & Color Calibration | Support |
Refresh Rate | ≥3000Hz③ |
Load Range | 128×256 pixels (W×H, MAX.) |
Brightness Adjustment Range | 0-255 (adjustable) |
Typical Lifespan | 100,000 hours |
Operating Temperature | -20℃~60℃ |
Operating Humidity | 10%-90%RH, non-condensing |
Storage Temperature | -40℃~80℃ |
