One-click effortless screen sharing, seamless multi-platform switching
Interoperability, touch feedback
Full platform coverage, seamless access
Transmission security to prevent leakage

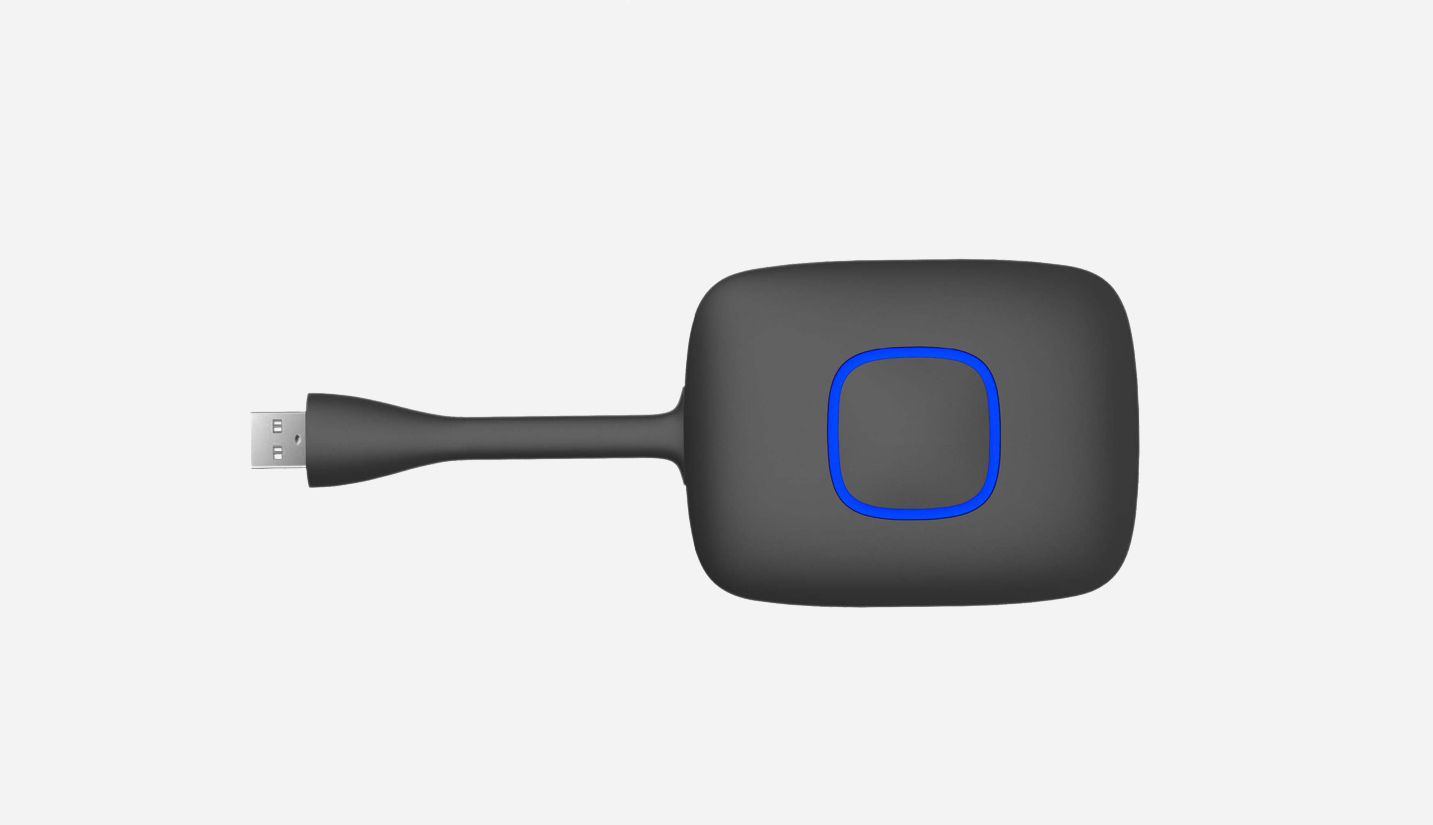

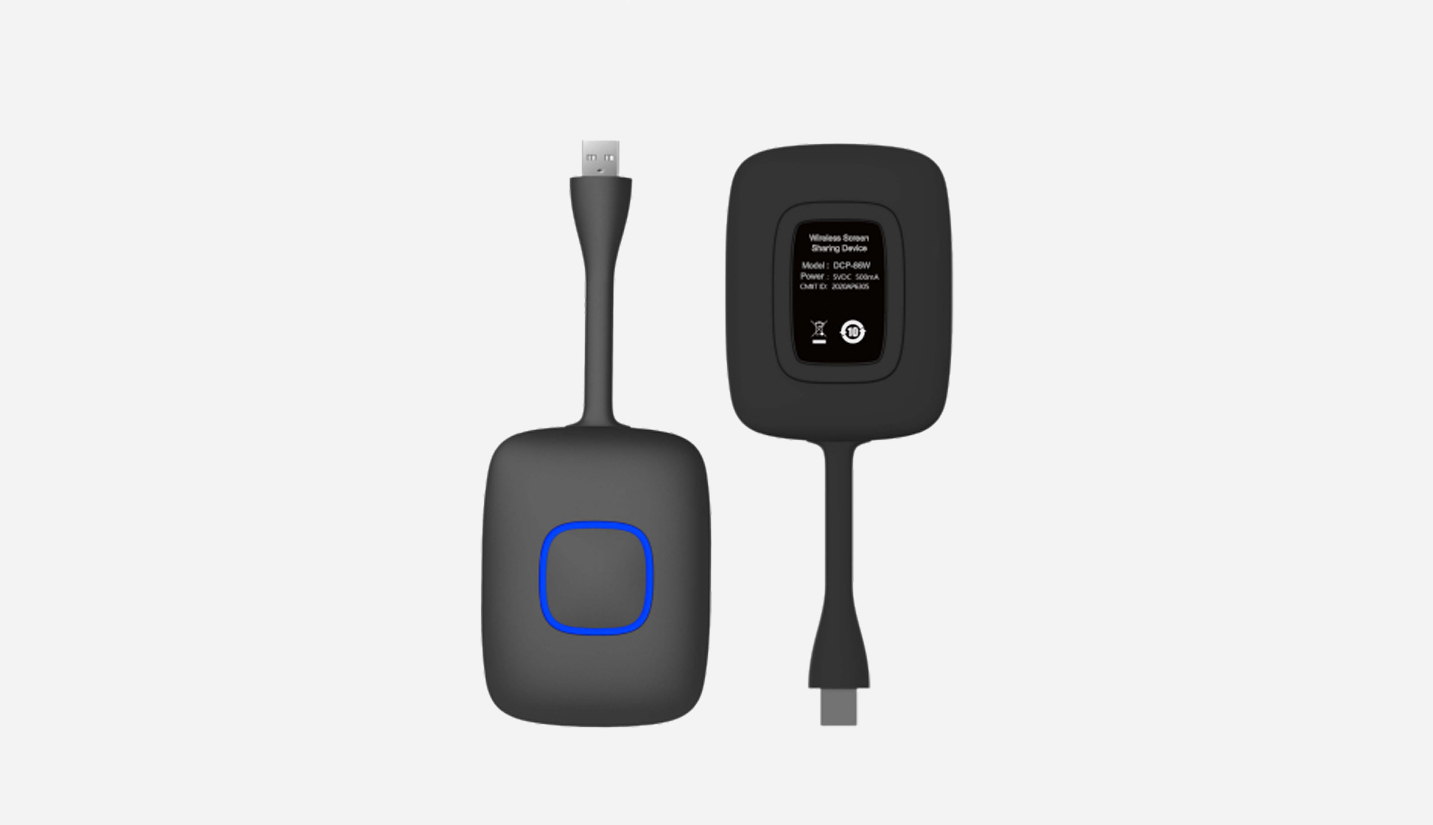

Wireless Screen Sharing Device enables wireless projection between computers and displays. With just a simple click, presentation content can be instantly shared on the screen wirelessly, effectively enhancing meeting efficiency and facilitating better decision-making. Wireless Screen Sharing Device not only allows computers to control displays but also supports touch-back functionality, enabling operations on the large screen to be transmitted back to the computer for synchronized content modifications. The all-platform connectivity solution allows simultaneous projection of mobile devices, tablets, and computer screens. Whether using PCs, Macs, or other mobile devices, it ensures "Easy Access and Instant Sharing." Transmission is more secure, with the receiver supporting one-click connection, QR code scanning, screen-sharing code connection, and near-field discovery service connection. It also supports extended display mode for screen sharing and control, effectively preventing privacy leaks.
Model | DCP-86W |
Hardware Parameter | |
Output Resolution | 1920*1080 |
Number of simultaneously connected input sources | 8 |
Interface | USB2.0*1 |
Input Voltage | 5V-DC |
Machine Power | 2.5W |
System Configuration | |
Transmission Delay | The delay time is within 120ms |
Operating System | Window 7,8,10 Mac OS X 10.6, 10.7// |
Computer System Requirements | CPU: Intel Pentium Dual Core E2140-2x1600MHz(Or similar products: AMD Athlon 64 X2 3800+ -2x2000MHz) RAM(storage): 1024 MB OS: Home(SP3)(Support Windows 7, but it needs higher RAM) |
Encryption | CCMP |
Authentication Protocol | WPA2-PSK |
Wireless Transmission Protocol | IEEE 802.11 a/g/n |
Wireless Data Rate | 50Mbps |
Frame Rate | Windows: 1920x1080 25fps/1366x768 25fps IOS: 1920x1080 30fps/1366x768 30fps |
Environmental Parameter | |
Using Environment | Good grounding, the temperature is 20℃ |
Temperature Range | Working Temperature: +5℃ ~ 40℃ Storage Temperature: -20℃~ 60℃ |
Humidity Range | Working Humidity: 0 to 80% relative humidity Storage Humidity: 0 to 95% relative humidity |
Distance | The longest distance between the wireless sharing screen and the host is 15m(100ft) |
Frequency Band | 2.4GHz and 5GHz（Recommended to use 5GHz） |
Whole Machine Parameters | |
Net Weight | 63.3kg |
Machine Dimensions | 61x156x17mm |
Product Dimensions (L x W x H) | 61.1x16.9x157.5mm |
