Wired Digital Conference System Solution for Government and Enterprise Training Scenarios D6201 D6201C - 翻译中...

II. Precise Audio Coverage & HD Audio-Visual Collaboration - D6201 Conference System for Efficient Communication in Small and Medium-Sized Conference Rooms

Conference Room Size: 100-150㎡

Application Scenarios: Corporate departmental meetings, training sessions, and board meetings.

System Composition: HD audio and video + precise sound reinforcement + one-key recording and broadcasting, enhancing meeting efficiency

System Advantages:

• Flexible Audio Configuration: Wireless handheld microphones paired with mixing consoles and feedback suppressors enable presenters to move freely while eliminating howling and enhancing sound quality. It supports diverse audio input/output requirements for versatile usage.

• Precise Sound Coverage: Equipped with four DSP7908 inverted bass-reflex bidirectional speaker systems, supporting wall-mounted, suspended, and other installation methods, delivering uniform and crystal-clear audio coverage throughout the meeting room.

• Efficient Video Recording and Storage: The DSP9201 recording and broadcasting system simultaneously captures video, audio, and electronic device images, generating standardized streaming media files for live broadcasting, storage, post-production editing, and on-demand playback.

• Real-Time Video Monitoring and Interaction: The D6284 HD Camera captures high-quality video, while the D6201 conference host connects to the smart conference terminal, enabling live video monitoring and signal transmission to ensure seamless presentation and interactive engagement.

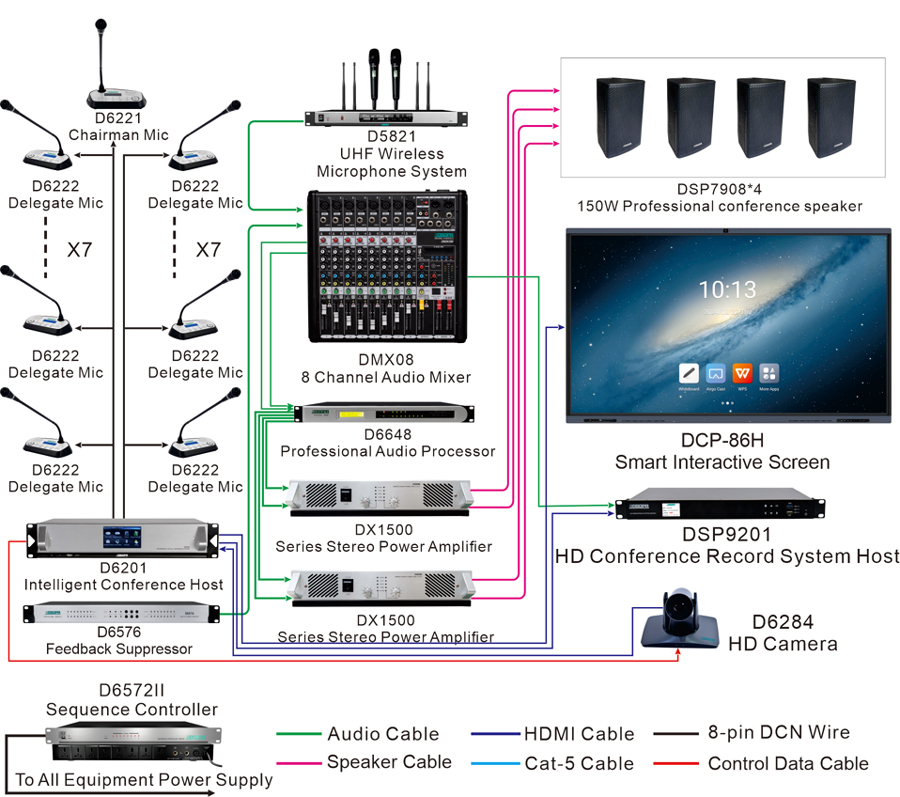

System Configuration

System Functions:

• The D5821  handheld microphone + D6201 conference microphone serve as audio input sources.

• The DMX08 mixing console is used for audio source mixing and adjustment.

• The D6201 conference host, paired with D6284 camera, enables video tracking.

• The DCP-86H smart conference flat panel displays meeting content in real time.

• The DSP9201 recording and broadcasting system captures and stores full meeting proceedings.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

III. Paperless and Fully Connected - D6201C System for Smart Experience in a 300㎡ Multi-Function Conference Hall

Conference Room Size: 200~300㎡

Application Scenarios: Government meetings, multinational corporate summits, and multi-function lecture halls

System Composition: Paperless collaboration + central control integration + camera tracking, delivering a premium meeting experience

System Features:

• Key Upgrade in D6201C: In split mode, HDMI output 1 supports full-screen, 2-screen, 3-screen, and 4-screen layouts. It automatically adjusts the layout based on the status of bound units to meet diverse display requirements. In matrix mode, both HDMI outputs (Output 1 and Output 2) simultaneously display the last executed image.

• Efficient Paperless Management: The paperless conference system minimizes paper waste and enhances meeting efficiency by supporting electronic materials and real-time collaboration. It also enables remote participation and information sharing, thereby optimizing resource utilization.

• Flexible Audio and Video Management: The handheld microphones and conference microphones are integrated with the sound reinforcement system, while the mixing console enables precise sound adjustments to ensure clear sound quality, and the camera tracking system works in real time with the intelligent conference flat panel to display meeting content, thereby boosting meeting engagement.

• Comprehensive Audio and Video Control: The central control system enables centralized management of lighting, devices, screen projection, and audio-video conferencing, streamlining operations and ensuring smooth meeting proceedings.

• Efficient Recording and Storage: The recording and broadcasting system enables real-time capture and storage of meeting content, supporting post-production editing, archiving, and on-demand access, ensuring the integrity and easy retrieval of meeting materials.

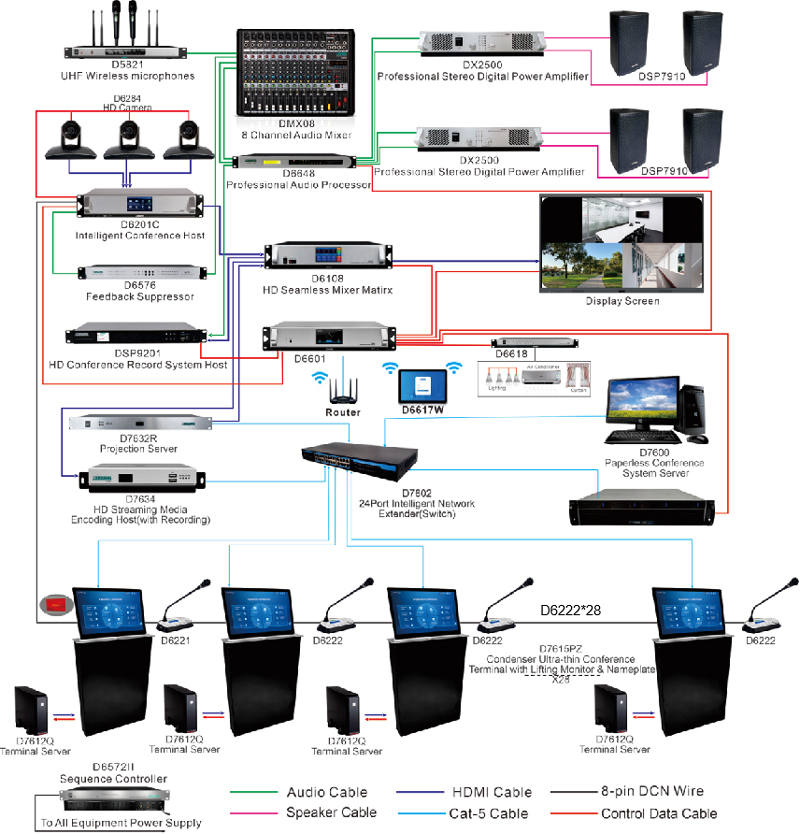

System Configuration - Paperless Terminal with Integrated Microhone

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

System Configuration - Paperless Terminal with External Microphone

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

IV. D62 Intelligent Digital Conference System Overview

The conference host is seamlessly integrated, featuring key functionalities such as conference discussion, voting, simultaneous interpretation, camera tracking, automatic recording, multimedia playback, line input/output, and central control system integration.

V. D6201C Upgraded Features

VI. D62 Series Microphones

VII. New Arrival - DSP79 Series Professional Speakers

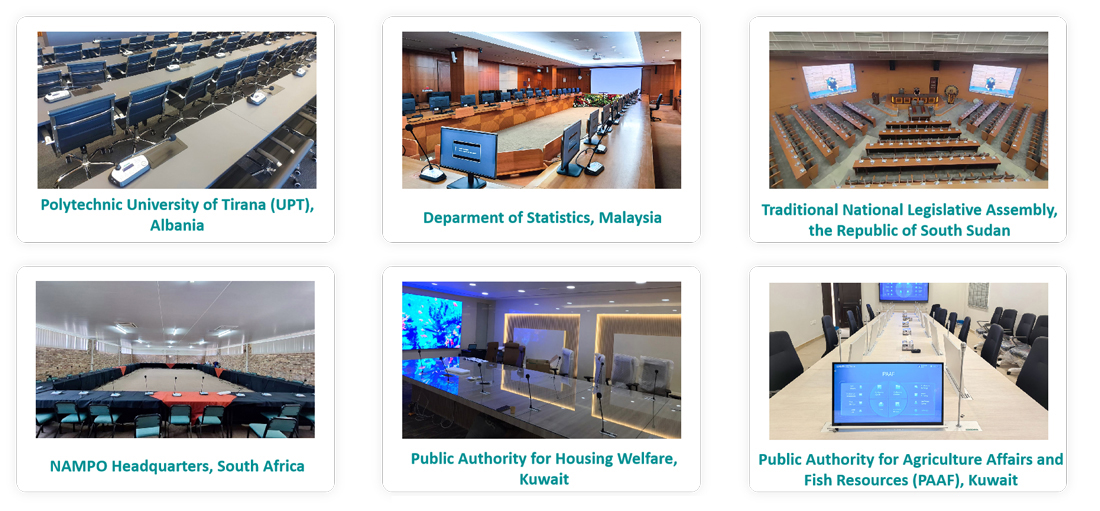

VIII. D62 Series Wired Conference System - Case Gallery
