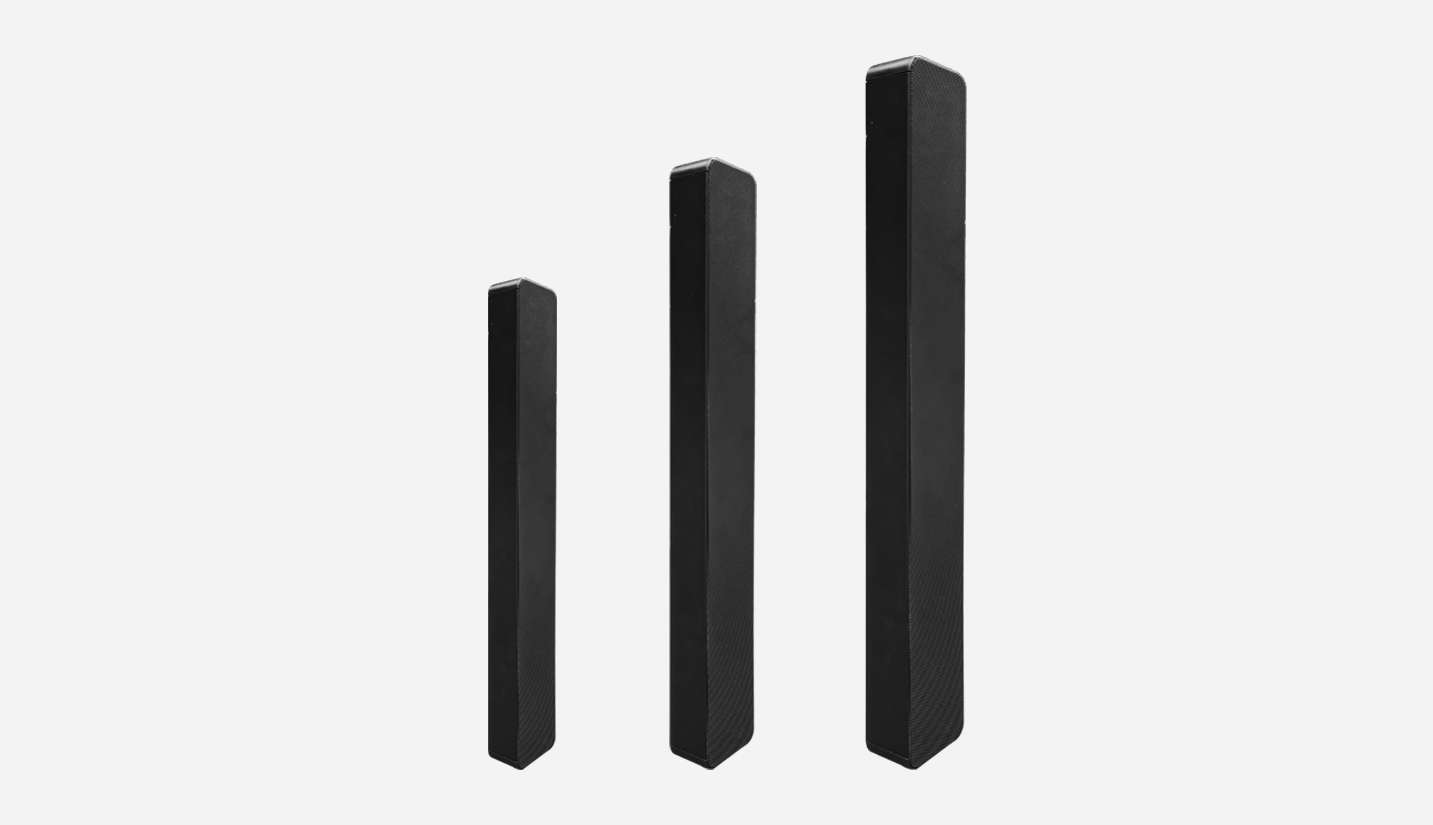

The D8050UT series includes 3 models, each equipped with a different number of tweeters to meet different audio needs.
Aluminum alloy box, excellent airtightness. Strong and durable, effectively isolates sound leakage and internal interference.
The streamlined metal mesh cover is closely integrated with the box body, which is beautiful and elegant.
Designed with a 140°(H)×20°(V) coverage angle, the D8050UT series ensures clear sound and spatial optimization.
The product's sensitivity ranges from 86dB to 90dB, the rated power ranges from 50W to 150W, and the maximum sound pressure level is up to 109dB, making it suitable for application environments that require high volume and clarity.
This speaker is equipped with a 2.5" paper cone speaker and a 1-inch tweeter, combining unique design with high performance. High sensitivity and low distortion bring a simple, natural, soft and pleasant sound. Its innovative linear acoustic structure optimizes the mid- and high-frequency performance, providing excellent directivity, concentrated sound energy and balanced and clear sound quality. It is perfectly suitable for small and medium-sized spaces such as restaurants, teahouses, stations, schools, squares, offices, conference rooms, home theaters and churches.
Model | D8505UT | D8510UT | D8515UT | |
Drive Units | Full-range | 2.5"×2 | 2.5"×4 | 2.5"×6 |
Tweeter | 1"×1 | 1"×1 | 1"×1 | |
Rated Power (RMS) | 50W | 100W | 150W | |
Impedance | 8Ω | 8Ω | 8Ω | |
Freq. Response | 140Hz-20KHz | 130Hz-20KHz | 130Hz-20KHz | |
Sensitivity | 86dB | 87dB | 88dB | |
Maximum SPL | 103dB | 107dB | 109dB | |
Coverage Angle | 140°(H)×20°(V) | 140°(H)×20°(V) | 140°(H)×20°(V) | |
Dimension(LxWxH) | 516mm×90mm×52mm | 669mm×90mm×52mm | 822mm×90mm×52mm | |
Net Weight | 1.2KG | 2.3KG | 3.4KG | |
