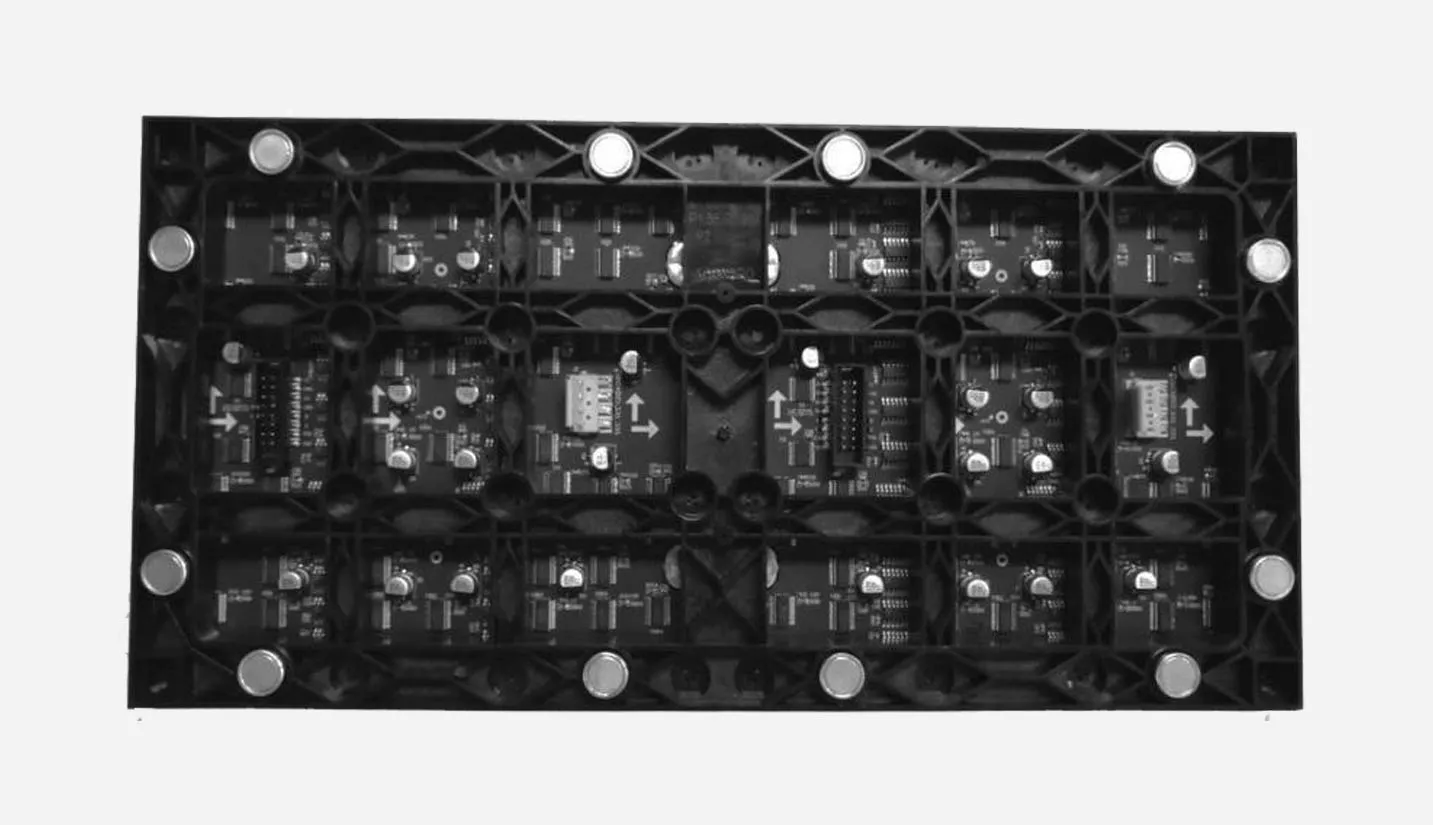

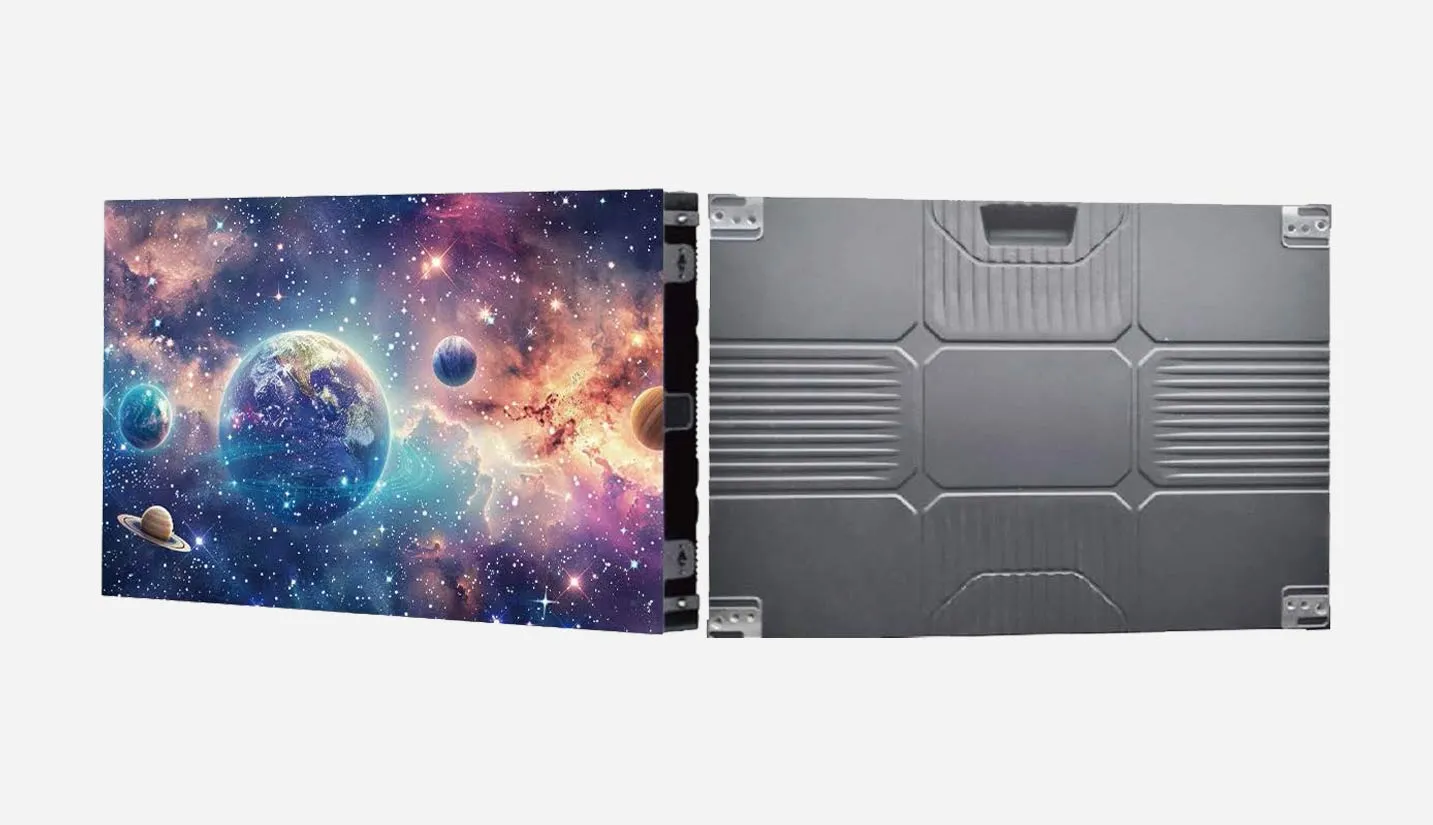

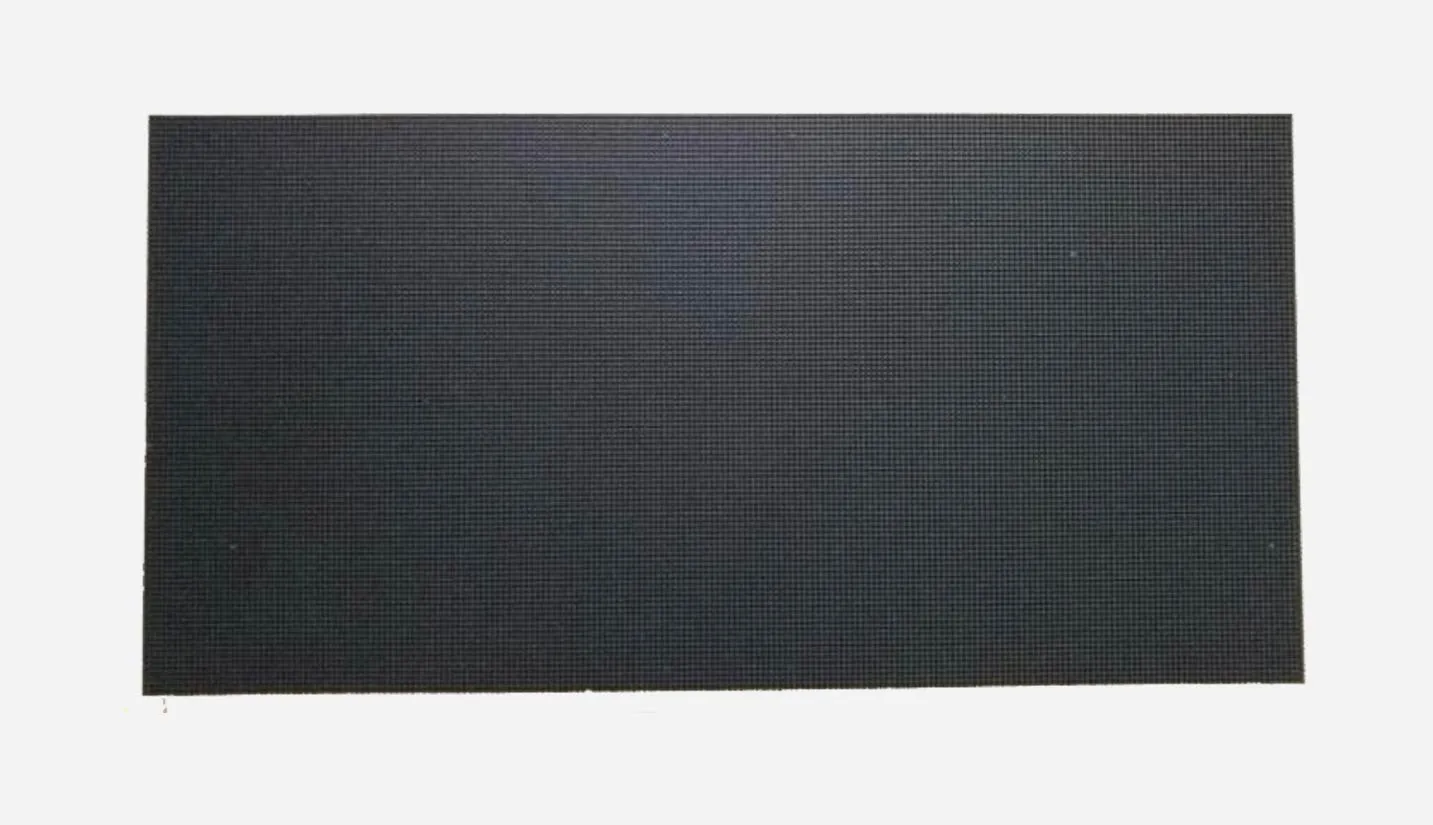

Model | DP-N153CC | |||||
LED SMD1010 | Color | IF (mA) TEST | Rd (nm) Typ | Iv (mcd) Typ | Vf (V) Typ | View Angle (deg.) |
Red | 8 | 620 | 22 | 2.0 | 110 | |
Green | 5 | 525 | 38 | 3.0 | 110 | |
Blue | 3 | 470 | 5 | 3.0 | 110 | |
Pixel Pitch | 1.538mm | |||||
Pixel Density | 422500 dots/㎡ | |||||
Module Resolution | 208 dots (W)×104 dots (H) | |||||
Module Dimensions | 320mm (W)×160mm (H) | |||||
Module Weight | Approximately 400g | |||||
Drive Method | 16-bit constant current drive (PWM) | |||||
Scan Mode | 1/52 | |||||
Operating Voltage | DC5V±10% | |||||
Maximum Current | 5.6A (typical) ① | |||||
Maximum Power Consumption | 28W (typical) ② | |||||
Power Interface | VH4 | |||||
Signal Interface | HUE75E (IDC320) | |||||
Maximum Brightness | ≥600cd/㎡ | |||||
Color Temperature | 1000–20000K | |||||
Viewing Angle | 170° | |||||
Optimal Viewing Distance | ≥1.5m | |||||
Gray Scale | 14 bit | |||||
Brightness and Color Correction | Support | |||||
Refresh Rate | ≥3840Hz③ | |||||
Operating Environment | Indoor | |||||
Brightness Adjustment Range | Adjustable from 0~255 | |||||
Typical Lifespan | 100,000 hours | |||||
Operating Temperature | -20℃~60℃ | |||||
Operating Humidity | 10%-90%RH, non-condensing | |||||
Storage Temperature | -40℃~80℃ | |||||
